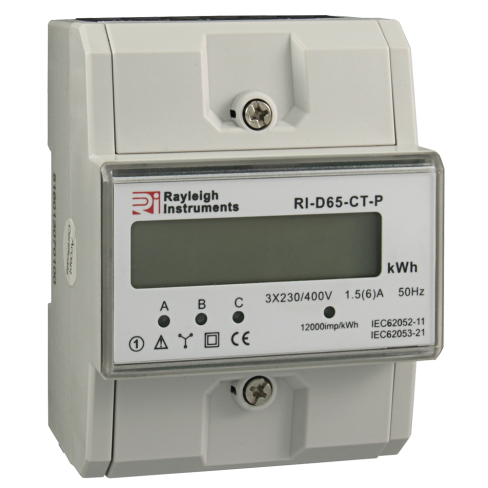

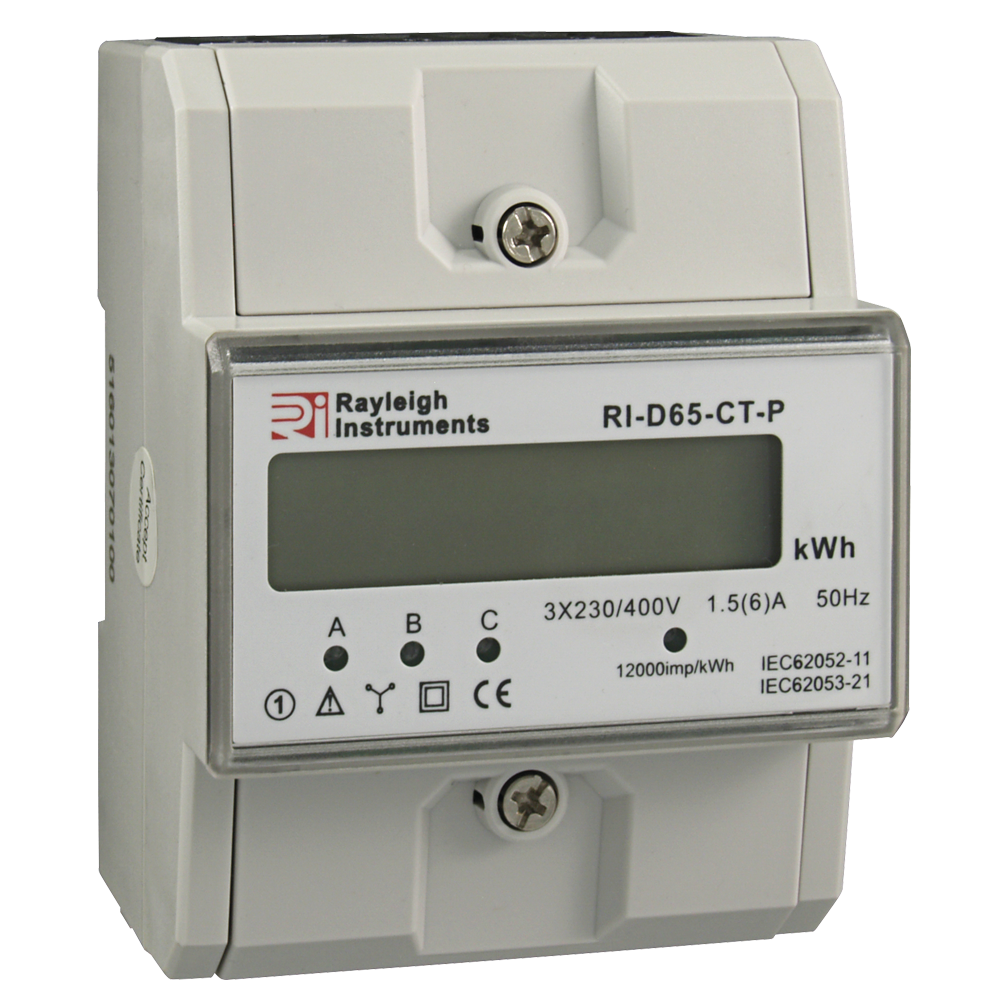

Rayleigh Instruments RI-D65-CT-P -/5A Three Phase Kilowatt Hour Meter with Pulse Communication and CT Operated

Features

This product is no longer available - see bottom of page for new product

  • Three phase energy meter
  • Accuracy Class 1
  • -/5A Current transformer connected
  • 65mm wide DIN rail mounting
  • LCD display
  • Measured voltage 230V 50/60Hz
  • With pulse output

Details

This product is no longer available - see bottom of page for new product

RI-D65-CT-P is a Class 1 three phase kilowatt hour meter.
The RI-D65-CT-P is a 65mm DIN Rail mounted KWh (Kilowatt hour) active energy meter with a pulse output..
The RI-D65-CT-P has 3 phase input -/5A current transformer driven 230/415V 50/60Hz system.

Additional Information

Manufacturer Rayleigh Instruments

Downloads

Files

RI-D65-CT-P Data Sheet RI-D65-CT-P Data Sheet
RI-D65-CT-P Instruction Manual RI-D65-CT-P Instruction Manual
Product Name / Options Price (ex VAT)
RI-D65-CT-P - Three Phase kWh DIN Rail Meter CT Operated - Pulse Call for Prices
