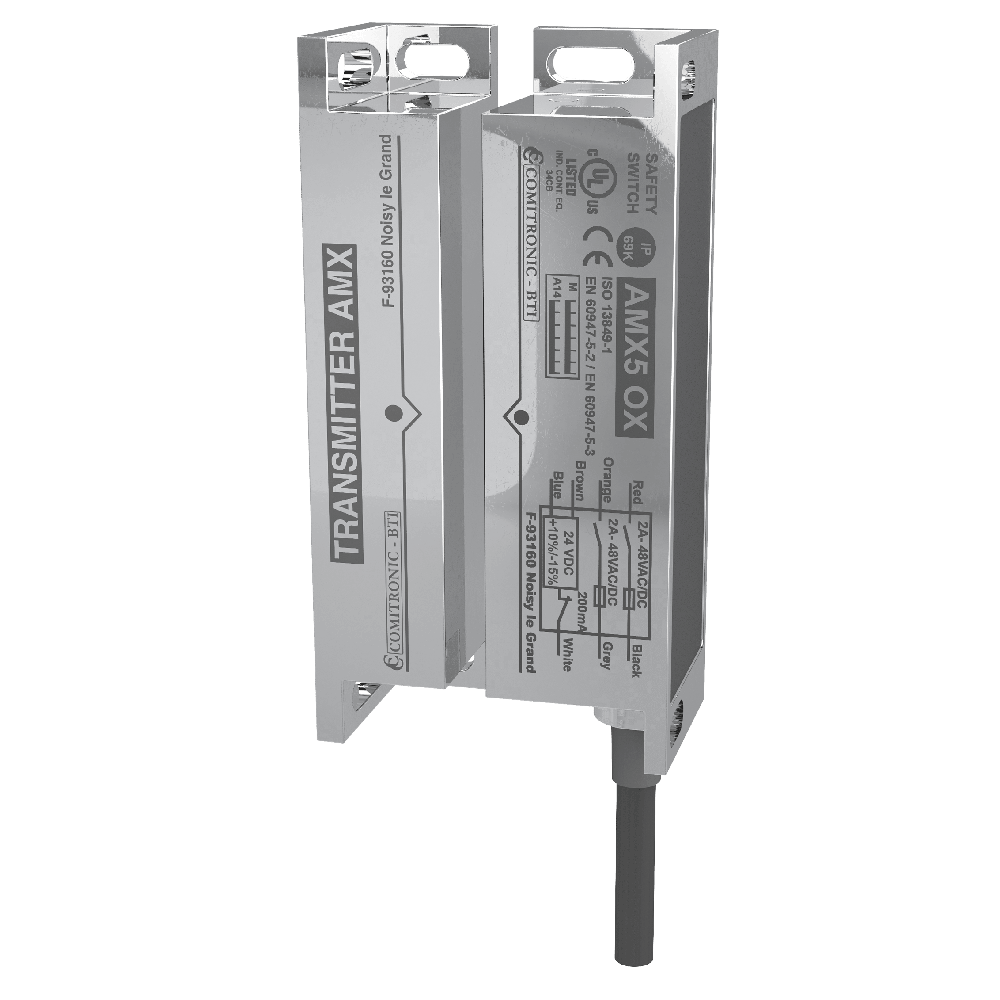

AMX4 and AMX5 devices are coded electronic autonomous sensors using our ACOTOM® process, allowing the opening of mobile protectors on dangerous machines to be detected. It is able to detect its own failure and lock itself, preventing the safety line from closing. A sensor consists of two PA6 or 316L stainless steel (AMX5OX) transmitting and receiving parts. The receiver supplies two potential-free NO safety lines and an NC PNP (AMX5 or AMX5OX) auxiliary contact. This safety product must be checked at least once a year.
Technical data :
Switching distance Sn (closing) : 7mm
Switching distance Sn (opening) : 10mm
Hysteresis/Misalignment : +2mm / ±7mm
Power supply : 24V AC/DC –15% / +10%, 50/60Hz
Current consumption : 40mA/DC, 50mA/AC
Safety outputs: 2 NO outputs 48V AC, 30V DC, 2A
Auxiliary output : PNP-NC, 250mA
Electronic double coding with self-control : ACOTOM®
Temperature operation : -20°C…+60°C
Max. switching frequency : 2Hz
Resistance to vibration : 10g / 11ms
Shock stress : 10-55Hz, 1.5mm
Protection class : IP67
Mechanical life expectancy : 50.000.000 operations
Housing : STAR2E, yellow
Connection : Cable 8-pin., 3m/6m/12m
Standards : EN60947-5-1, EN954-1, EN13849-1
Electromagnetic immunity : Acc. to IEC 61000-6-2, acc. to IEC 61000-6-4
Weight Emitter/Receiver : 77g / 211g
Safety classification :
Acc. to EN ISO 13849-1 : 1 switch up to PLd cat.3
Certification : CE, TÜV, UL/CSA
