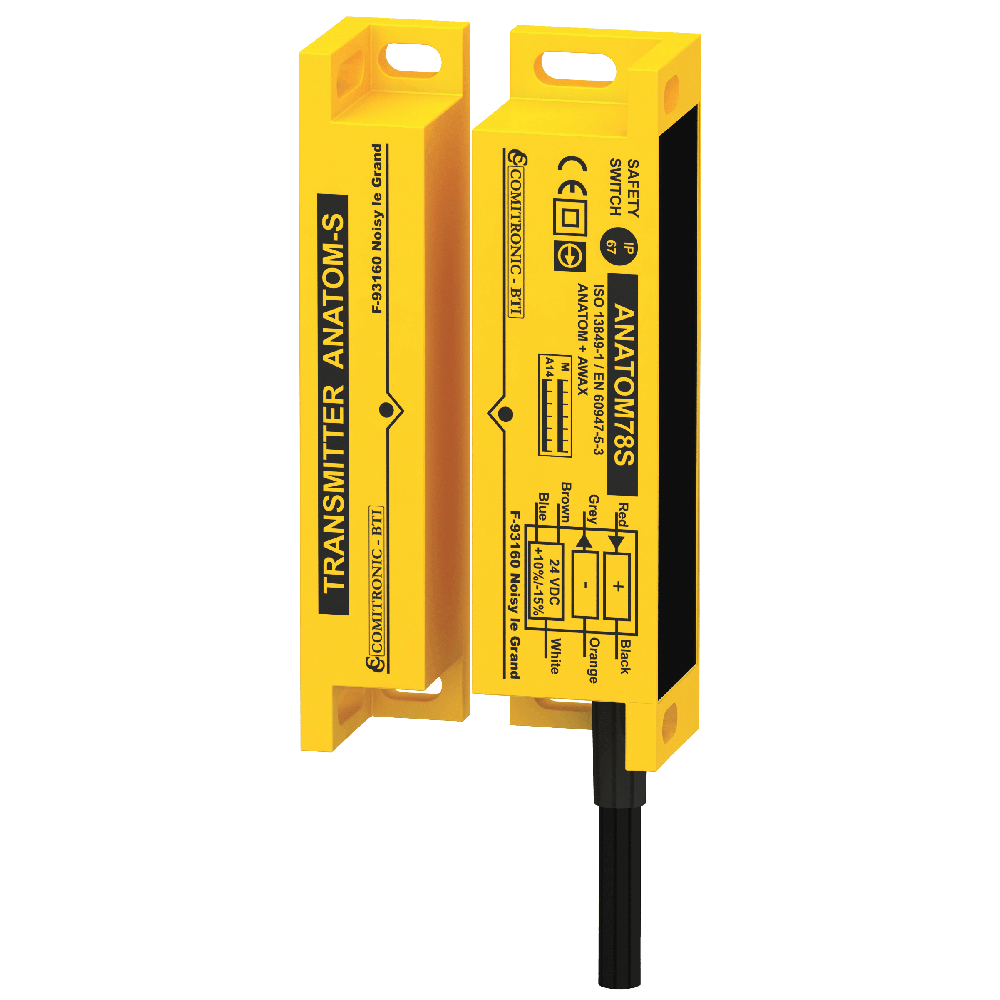

The ANATOM is an electronic coded switch using our ACOTOM process. When it is connected to an AWAX safety module, it detects the opening of guard doors on dangerous machines. Housed in two polycarbonate housings (transmitter and receiver), it provides two independent and static NO lines, free of potential and isolated from the decoding system for more safety. Moreover, it provides a PNP contact, which indicates the state ot the switch.
Switching distance Sn (closing) : 10mm
Switching distance Sn (opening) : ±7mm
Hysteresis/Misalignment : +2mm
Power supply : 24V AC/DC; –15% / +10%, 50/60Hz
Current consumption : 30mA/DC; 70mA/AC
Safety outputs : 2 static outputs ;24V DC/800mA @ 25°C
Auxiliary output: 1 PNP/NO, 250mA (78S); 1 PNP/NC,250mA (98S)
Coding principle : ACOTOM®2
Temperature operation : -20°C…+60°C
Max. switching frequency : 10ms
Resistance to vibration : 30g / 11ms
Shock stress : 10…55Hz, 1.5mm
Protection class : IP67
MTTFd/DC : 335 years / 99%
Housing : STAR2E, yellow
Connection : Cable 8-pin, 3/6/12m
Standards : EN60947-5-3, EN954-1, EN13849-1, EN55022, EN61000-6-2; 01/2006; EN61000-6-4; 03/2007
Electromagnetic immunity : Acc. to IEC 61000-6-2, acc. toIEC 61000-6-4
Weight Emitter/Receiver : 80g /100g
Safety classification :
Acc. to EN ISO 13849-1: 1 switch up to PLe cat.4 Serie wiring possible with 30 switches on a safety relay, up to PLe cat.3
Certification: CE, TÜV, UL/CSA
