  • Comitronic-BTI ANATOM78S PL EEX AND ANATOM78S OX EEX Position control on doors / casings in ATEX

More Views

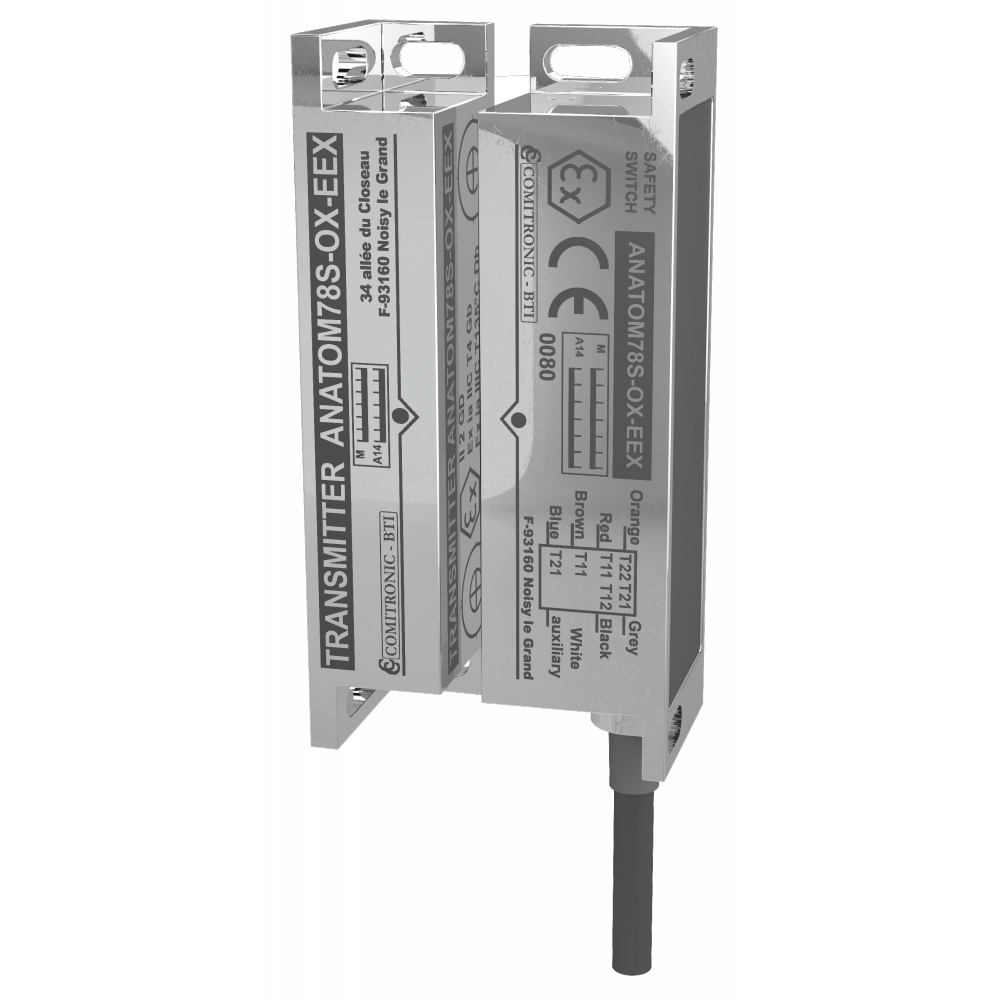

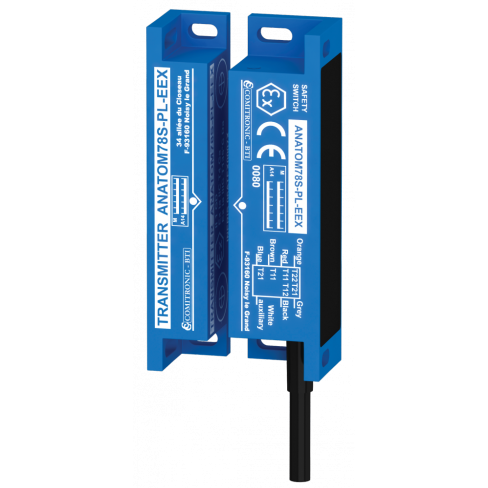

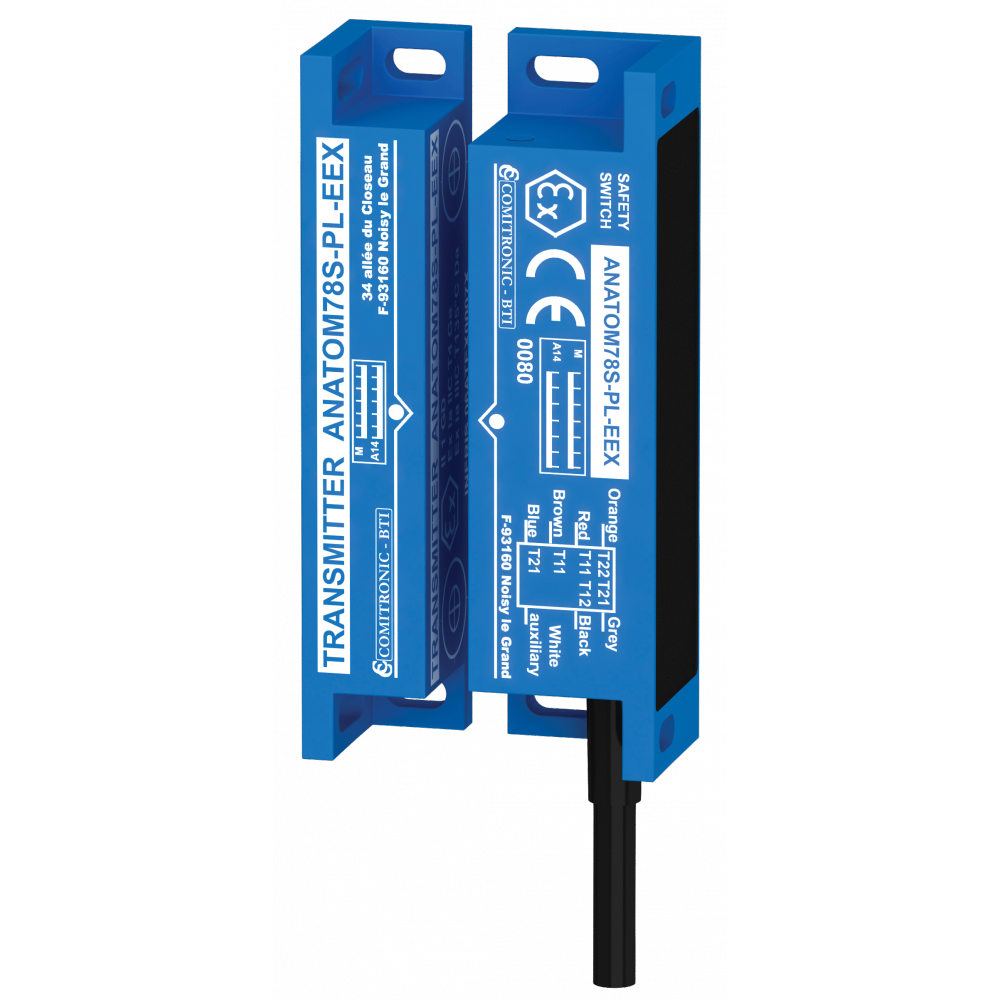

Comitronic-BTI ANATOM78S PL EEX AND ANATOM78S OX EEX Position control on doors / casings in ATEX

Features

  • Machine Safety
  • Level of performance with AWAX controller : up to PL = e
  • Safety category : 4 with AWAX controller
  • Time before dangerous failure : MTTFd = 277 years
  • Max. activation distance : 10mm, 4mm hysteresis
  • Safety contacts/diagnostics : NO 2 x 50mA/12V redundant and 1 x PNP 15mA/12V contact
  • Shock / vibrations : 30G
  • Detection encoding : mono-code inviolable
  • Indicator : LED indicates code recognition
  • Reset : automatic
  • Total number of connectable sensors in series : 0
  • Attachment : 4 tamper-proof M4 screws (optional ref: BH4)
  • Mounting position : 2 (double wall brackets)
  • Material : PA6 (PL version) or INOX 316L mirror polished (OX version)
  • Electrical connection : 12m or more on request
  • Water resistance : IP 67
  • Ambient temperature : -20°C…+40°C
  • Surface temperature : 135°C (dust) and T4 (gas)
  • Marking: PA6 pad printing + serial number, INOX316L laser engraving with mechanically punched serial number for permanent traceability
  • Certification: INERIS 06ATEX0007X

Details

Contactless coded electronic sensor.

ATEX zone 0/20 (PL version) or 1/21 (OX version)

Atex safety

ATEX standards
EN 60079-0
EN 60079-11
EN 60079-25
EN 60079-26

ATEX marking for PL version
II 1 GD
Ex ia IIC T4 Ga
Ex ia IIIC T135°C Da

Product used in combination with AWAX26XXL-EEX box

ATEX marking for OX version
II 2 GD
Ex ia IIC T4 Gb
Ex ia IIIC T135°C Db

Product used in combination with AWAX26XXL-EEX box

Additional Information

Manufacturer Comitronic - BTI

Downloads

Product Name / Options Price (ex VAT)
Comitronic-BTI ANATOM78S/EEX/12M ATEX 2NO+1NF Zone 0 & 20 with a 12M Cable Call for Prices
Comitronic-BTI ANATOM78S/EEX/25M ATEX 2NO+1NF Zone 0 & 20 with a 25M Cable Call for Prices
Comitronic-BTI ANATOM78S/OX/EEX/12M Stainless Steel ATEX 2NO+1NF Zone 0 & 20 with a 12M Cable Call for Prices
