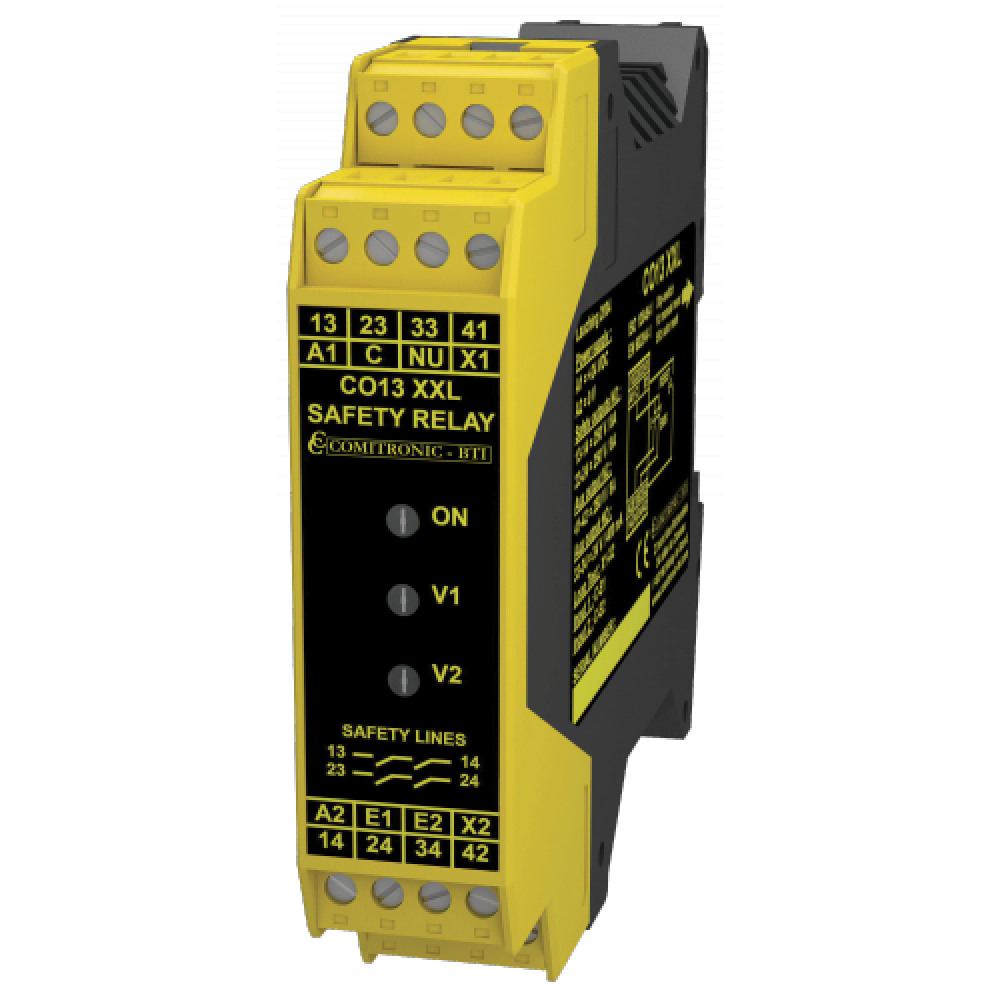

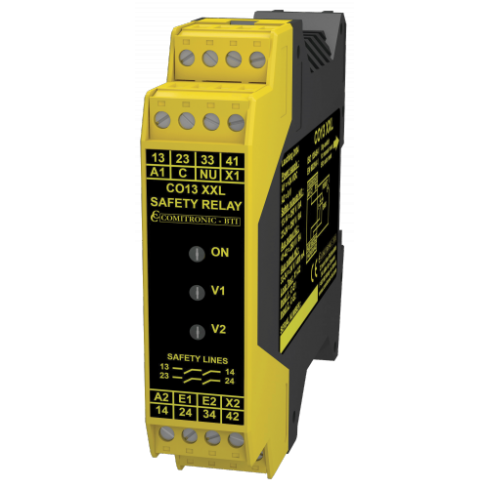

Comitronic-BTI CO13 XXL Safety Relay - Control of emergency stops

More Views

Comitronic-BTI CO13 XXL Safety Relay - Control of emergency stops

Features

Power supply : 24V AC/DC; -15%/+10%; 50Hz to 440Hz
Current consumption : < 3.5W (DC); < 4VA (AC)
Safety outputs : 2 NO; 8A/250V AC
Auxiliary output : 1 NC 8A/250V AC, 1 NC 0.4A 24AC/DC
Switching power : 50mW to 2000W
Electrical protection : Electronic current-limiting circuit-breaker
Temperature operation : -20°C…+60°C
Protection class : IP20
Reaction time : < 20ms
MTTFd/DC : 320 years / 90%
B10d : AC1: 860000, AC15: 300000, DC13: 300000
Housing : Polycarbonate, yellow
Connection : Plug-in terminals
Dimensions (W x H x D) : 22,5 x 100 x 111mm
Weight : 125 g
Standards: ISO 13849-1, EN 60947-5-1, UL508 NRNT, NRNT7 C22.2 n°14-M91, EN 61000-6-2 : jan 2006, EN 61000-6-4 : mar 2007
Safety classification
Acc. to EN ISO 13849-1 : PLe Cat. 3 wired as dual channel, PLd Cat.2 wired as single channel
Certification: CE

- | Add to Compare

Details

Control of emergency stops buttons
Control of mechanical switches
Independent supply inputs to avoid in-rush current
Internal electrical protection, auto-resetting
Plug-in terminals
Dip-switch to choose the reset mode (automatic/manual)

Additional Information

Manufacturer	Comitronic - BTI

Downloads

Files

Comitronic-BTI CO13XXL Datasheet

Product Name / Options	Price (ex VAT)
Comitronic-BTI CO13 XXL/120~240V, CAT.3, 2NO+1NF Safety Relay	Call for Prices
Comitronic-BTI CO13 XXL/24V, CAT.3, 2NO+1NF Safety Relay 24 AC/DC Restart Switch Selection Manual/Auto ; Output 8A	Call for Prices
