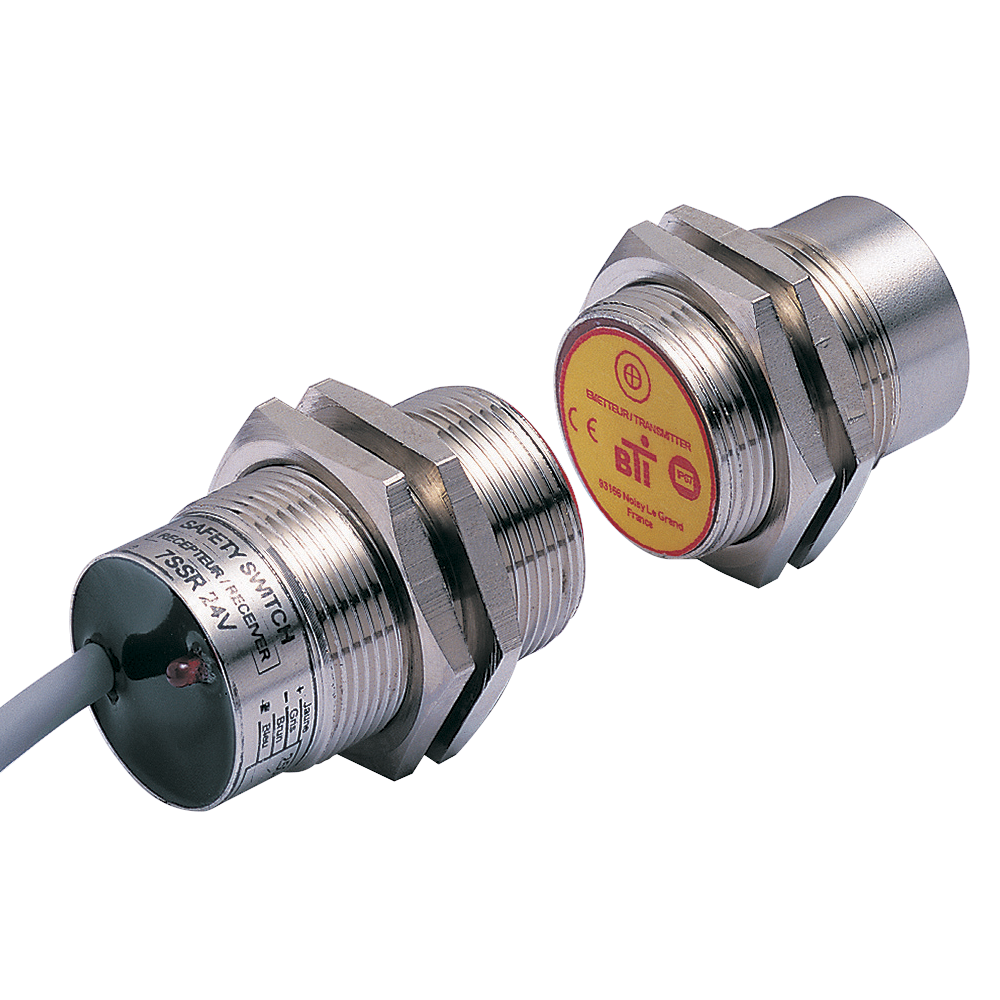

The 7SSR24V is a coded electronic autonomous sensor using our process ACOTOM allowing to detects the opening of the mobile protectors on dangerous machines. This switch is uncheatable. Housing in two elements in nickel and copper alloy, the transmitter and the receiver which supplies two NO contact lines free of potential and isolated from the decoding system which guarantees more safety, and an auxiliary NC PNP contact.
Switching distance Sn (closing) : 6mm
Switching distance Sn (opening) : nc
Hysteresis/Misalignment : +2mm / ± 30° in rotation
Power supply : 24V AC/DC –15% / +10%, 50/60Hz
Current consumption : 45mA/DC, 50mA/AC
Safety outputs : 2 NO outputs 48V AC, 30V DC, 2A
Auxiliary output : 1 PNP/NC 250mA
Coding principle : ACOTOM®
Temperature operation : -20°C…+60°C
Max. switching frequency : 2Hz
Resistance to vibration : 10g / 11ms
Shock stress : 10…55Hz, 1.5mm
Protection class : IP67
Mechanical life expectancy : 50.000.000 operations
MTTFd/DC : 50 years / 90%
Housing : CuNi
Connection : Cable 8-pin., 3m/6m/12m
Standards : EN60947-5-1, EN954-1, EN13849-1
Electromagnetic immunity : Acc. to IEC 61000-6-2, acc. to IEC 61000-6-4
Weight Emitter/Receiver : 50g / 195g
Safety classification : Acc. to EN ISO 13849-1 : 1 switch up to PLc cat.1 Serie wiring possible with 30 switches on a safety relay, up to PL3c (PL4c if only one)
Certification : CE
