Contactless encoded electronic sensor with relay
Category 3 total safety management without an external controller
Suitable for groove profiles and single or double doors

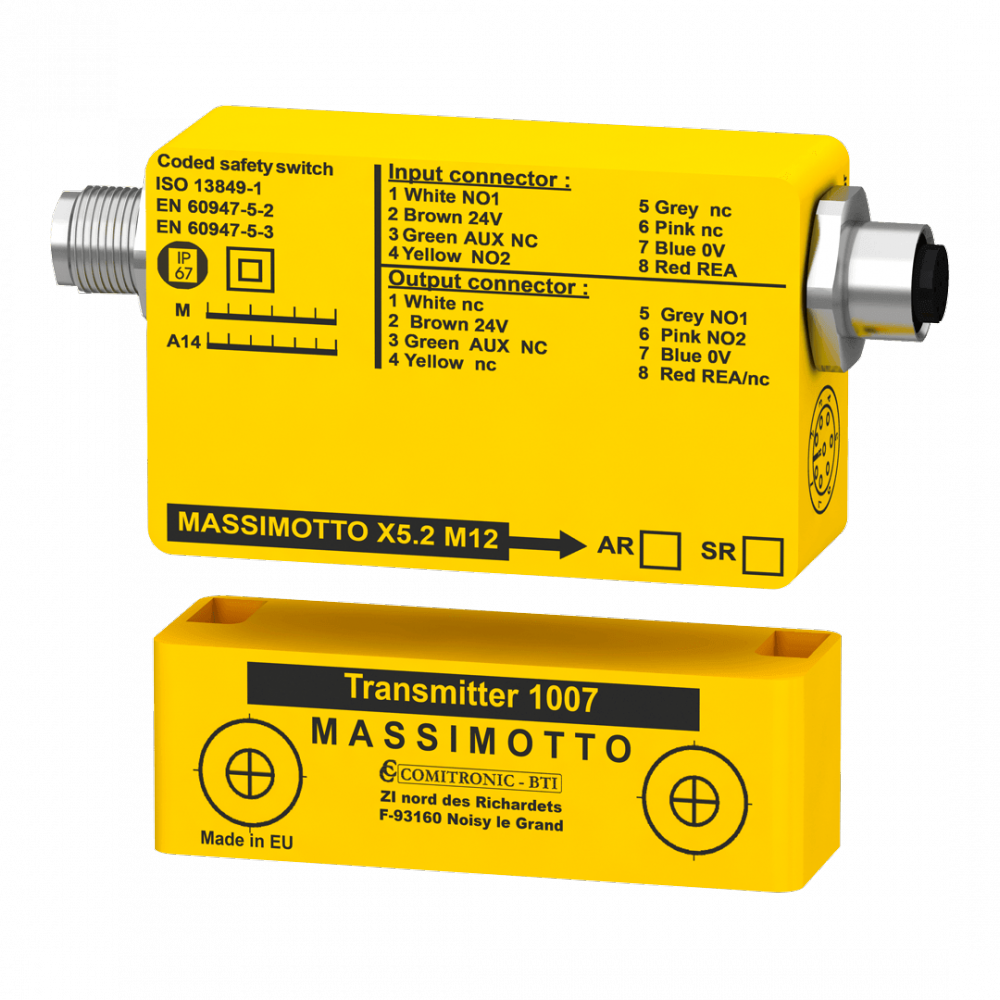

The MASSIMOTTO X5 M12 SR is a coded magnetic switch which detects the opening of doors and crankcases of dangerous machines. It uses our ACOTOM3 process, interactive self-controlled system, which locks the safety lines in case of failure. The safety is ensured without any external device. The sensor is composed of one receiver and one transmitter in polycarbonate. It provides two NO contact lines free of potential, independent and isolated from the decoding system for a perfect safety of using, and a static NC contact compatible with PLC, indicating the exact state of the switch. A special transmitter (1007D) allows to use the single sensor on a door with double hinge door.
The MASSIMOTTO X5 M12 AR is a coded magnetic switch that detects the opening of doors and crankcases of dangerous machines. It uses our ACOTOM3 process, « interactive self-controlled system, which locks the safety lines in case of failure. The safety is ensured without any external device.It is composed of one receiver and one transmitter in polycarbonate. It provides two NO contact lines free of potential, independent and isolated from the decoding system for a perfect safety, and a static NC contact compatible with PLC, indicating the exact state of the switch. A special transmitter (1007D) allows to use the single sensor on a door with double hinge door.
