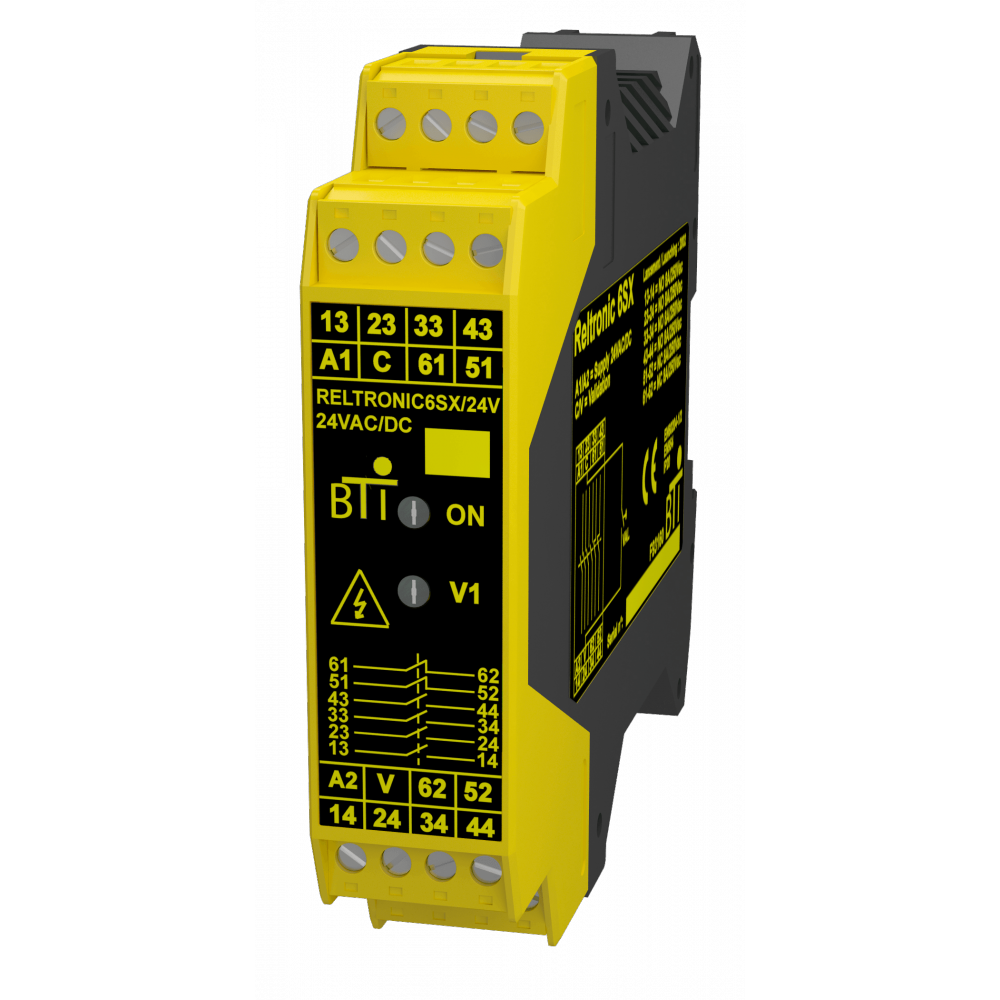

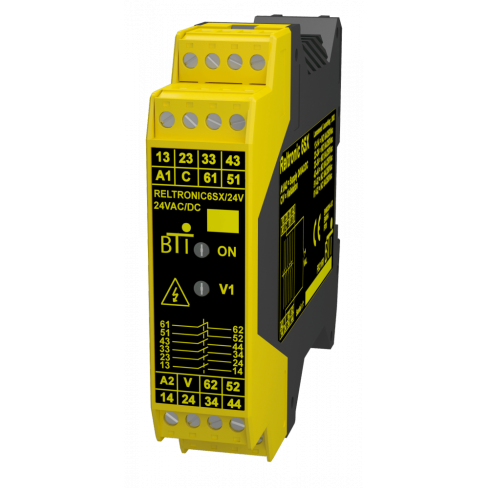

Comitronic-BTI RELTRONIC 6SX Guided Contact Relay / Safety Switch

More Views

Comitronic-BTI RELTRONIC 6SX Guided Contact Relay / Safety Switch

Features

Compact 22.5mm format
Six Class A EN 50205 power contacts
Removable terminals
Cycle before dangerous failure : B10d=100,000 at 5A
Max. closing time for NO contact : < 15ms (rebounds included)
Duration of rebounds for NO contact : < 4ms
Max. closing time for NF contact : < 16ms (rebounds included)
Duration of rebounds for NF contact : < 13ms
Protection severing wires : yes (opening of NO contacts)
Safety contacts : 4x NO 8A/250V / 2x NF 8A/250V
Indicators : 2 LEDs
Reset : automatic
Mounting : symmetrical DIN 35mm rail on DIN 50022
Mounting : IP 54 electrical box
Electrical connection : Maximum 14 AWG (2.08mm²) / 250V minimum
Temperature: -20°C…+60°C

- | Add to Compare

Details

The RELTRONIC 6SX/24V is a power interface desi- gned for industrial use. This module is equipped with 4 NO and 2 NC safety lines with a switching capacity of 8A/250VAC

Compact 22.5mm format
Six Class A EN 50205 power contacts
Removable terminals

Additional Information

Manufacturer	Comitronic - BTI

Downloads

Files

Comitronic-BTI RELTRONIC 6SX Contact Relay Datasheet

Product Name / Options	Price (ex VAT)
Comitronic-BTI RELTRONIC 6SX CAT.1 4NO+2NF Extension Relay	Call for Prices
