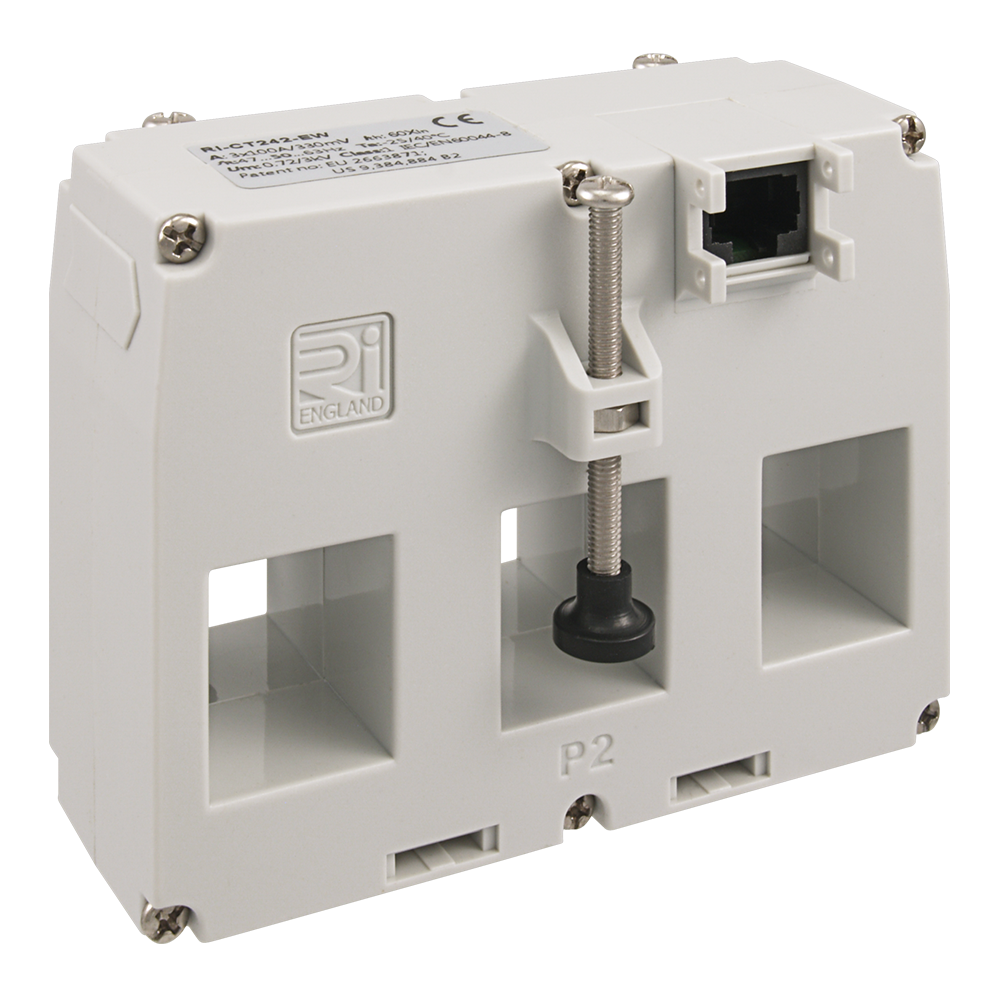

The RI-CT242-EW is part of the
easywire® family of current transformers and is one of five frame sizes available.
The
easywire® system has been designed to save up to 90% installation time compared to a standard current transformer to meter installation.
This three phase current transformer is suitable for monitoring current in industrial and commercial applications and is designed to connect to the
easywire® series of metering products.
Built-in limiting circuitry ensures the secondary of the current transformer is always under load and clamped to a safe level. This means that the output connection may be safely disconnected while under load.
Improved design features of these

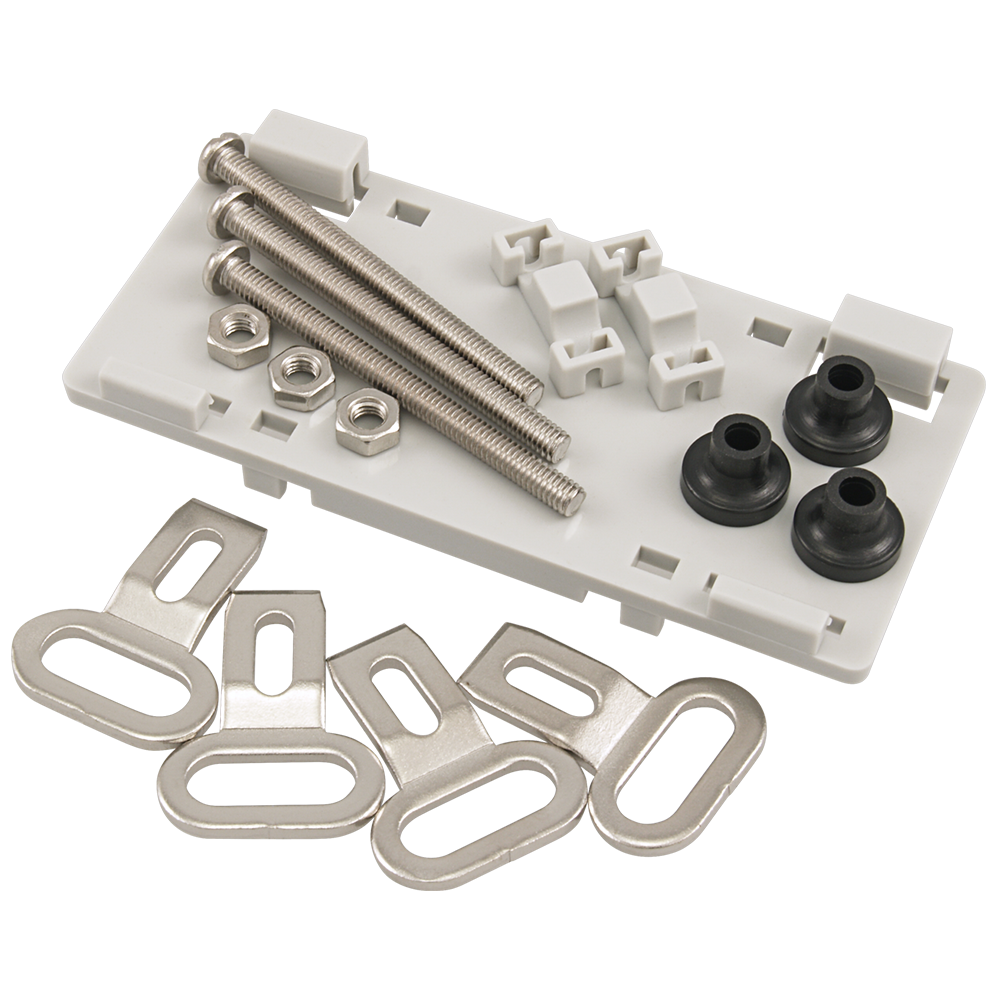

easywire® current transformers include a robust ‘snap-on’ DIN rail fixing, captive busbar location screw fittings, insulated busbar location feet, sealable (anti-tamper) RJ45 connection sockets and moulded load direction indication arrows on the CT shoulders.
The RI-CT242-EW is available with a horizontal RJ45 socket (stock) or with a vertical RJ45 socket (to order).
The RI-CT242-EW is available in 7 models with Primary Current :
60A, 100A, 125A, 150A, 160A, 200A and
250A.
(All models have
easywire® (RJ45) 330mV Output).
