  • Rayleigh Instruments DBP812 Single Phase Split Core Current Transformer - 80 x 120 Aperture

More Views

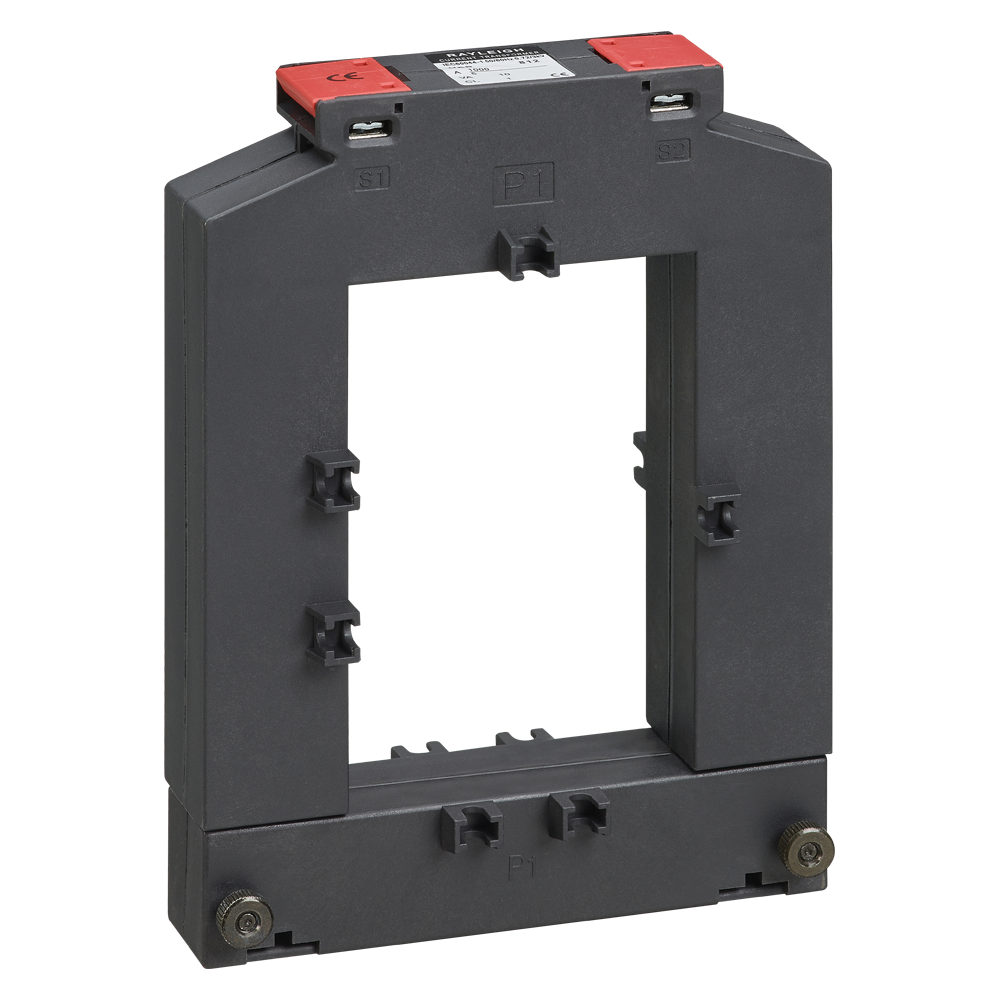

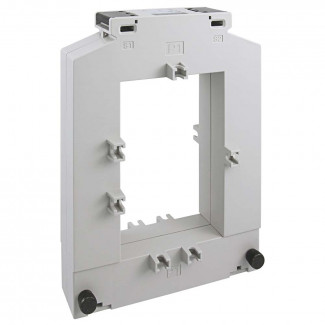

Rayleigh Instruments DBP812 Single Phase Split Core Current Transformer - 80 x 120 Aperture

Features

This product is no longer available - see bottom of page for alternative

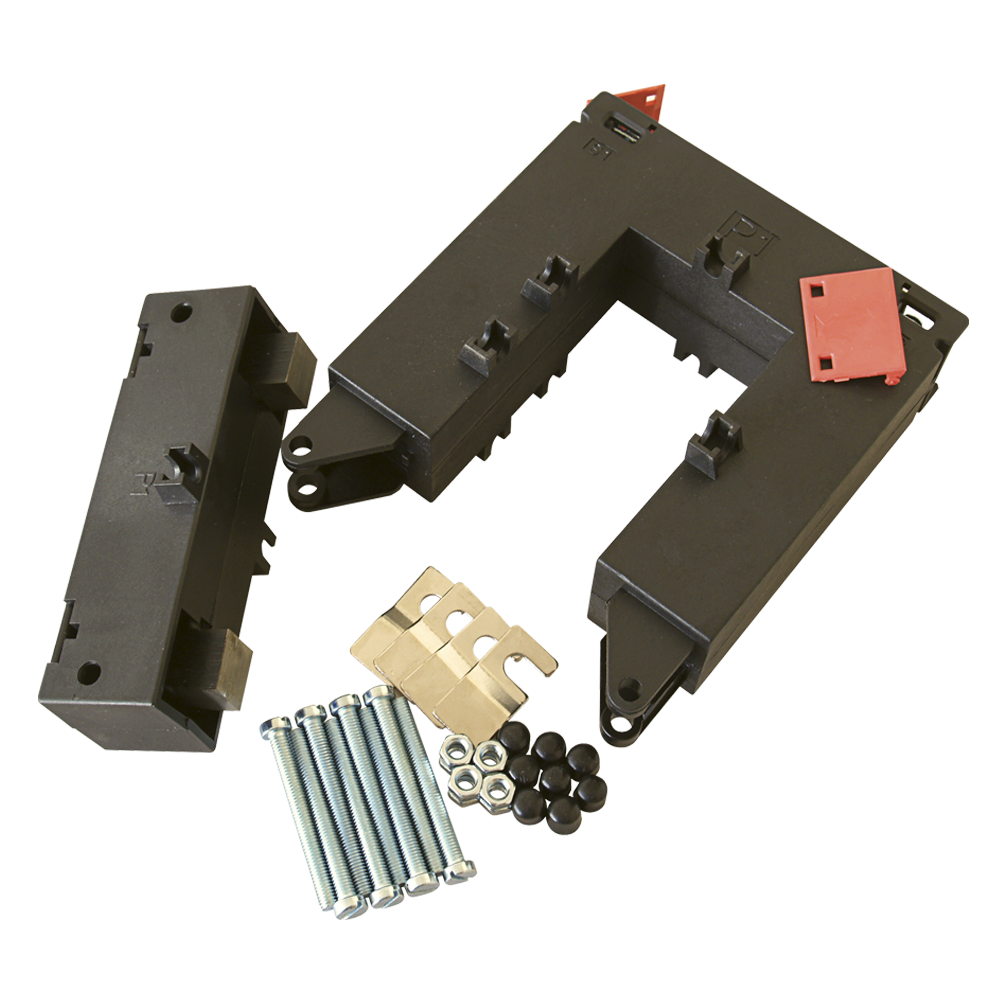

  • Split Core measuring current transformer
  • Ranges: 500 to 1600A (1A or 5A Secondary)

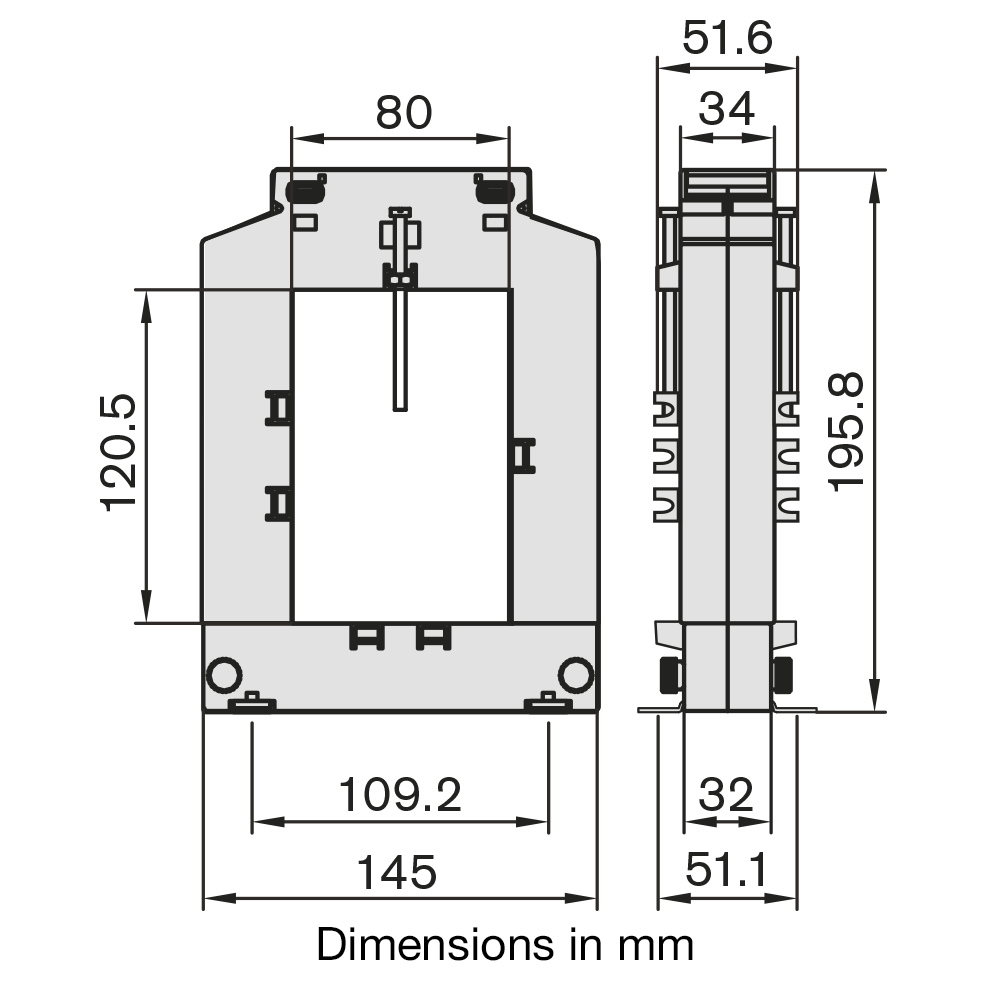

  • Busbar window : 80 x 120mm
  • Secondary terminals : Dual M5 Screws
  • Built-in Terminal covers
  • Housing Material Self extinguishing Nylon IEC185 classification VO according to UL-94
  • Weight : 1.25Kg

Details

This product is no longer available - see bottom of page for alternative

The DBP812 split core current transformer is designed for installation into existing plants where removal of busbars/cable lugs prevent installation of standard current transformers.

Additional Information

Manufacturer Rayleigh Instruments

Downloads

Product Name / Options Price (ex VAT)
DBP812 - Single Phase Split Core CT - 500 / 5A Call for Prices
DBP812 - Single Phase Split Core CT - 600 / 5A Call for Prices
DBP812 - Single Phase Split Core CT - 800 / 5A Call for Prices
DBP812 - Single Phase Split Core CT - 1000 / 5A Call for Prices
DBP812 - Single Phase Split Core CT - 1200 / 5A Call for Prices
DBP812 - Single Phase Split Core CT - 1250 / 5A Call for Prices
DBP812 - Single Phase Split Core CT - 1500 / 5A Call for Prices
DBP812 - Single Phase Split Core CT - 1600 / 5A Call for Prices
DBP812 - Single Phase Split Core CT - 2000 / 5A Call for Prices
