  • Rayleigh Instruments DBP816 Single Phase Split Core Current Transformer - 80x160mm

More Views

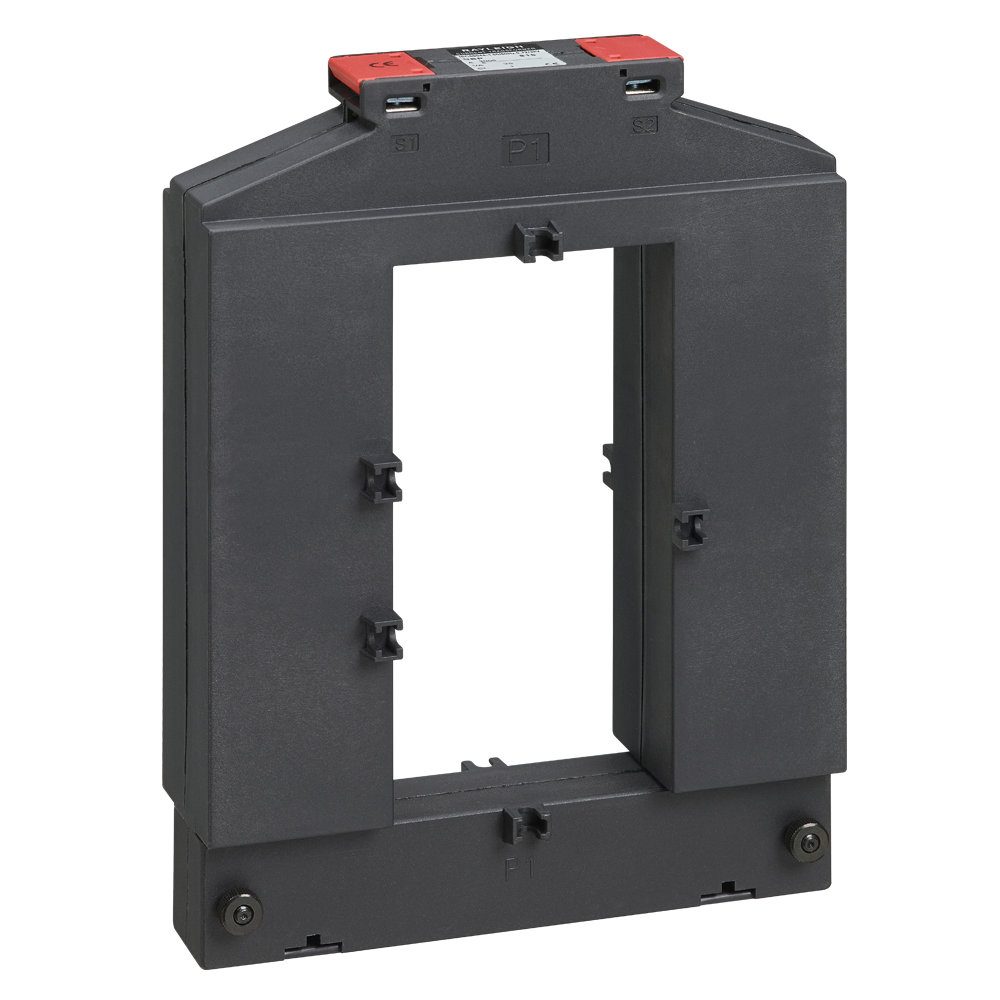

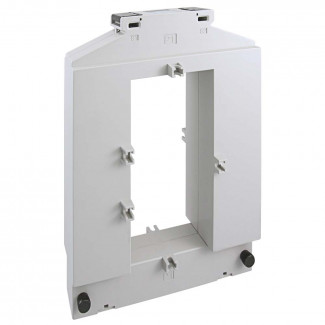

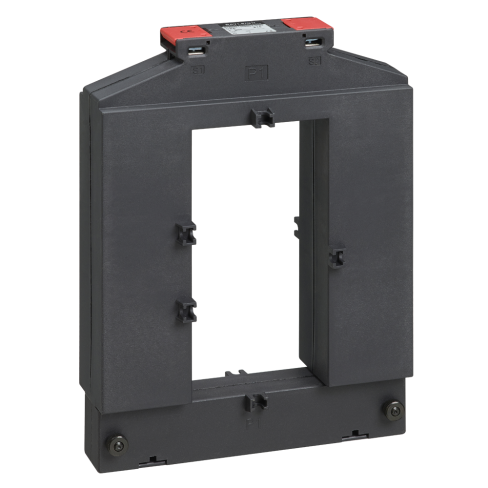

Rayleigh Instruments DBP816 Single Phase Split Core Current Transformer - 80x160mm

Features

This product is no longer available - see bottom of page for alternative

  • Split Core measuring current transformer
  • Ranges: 2000 to 5000A (1A or 5A Secondary)

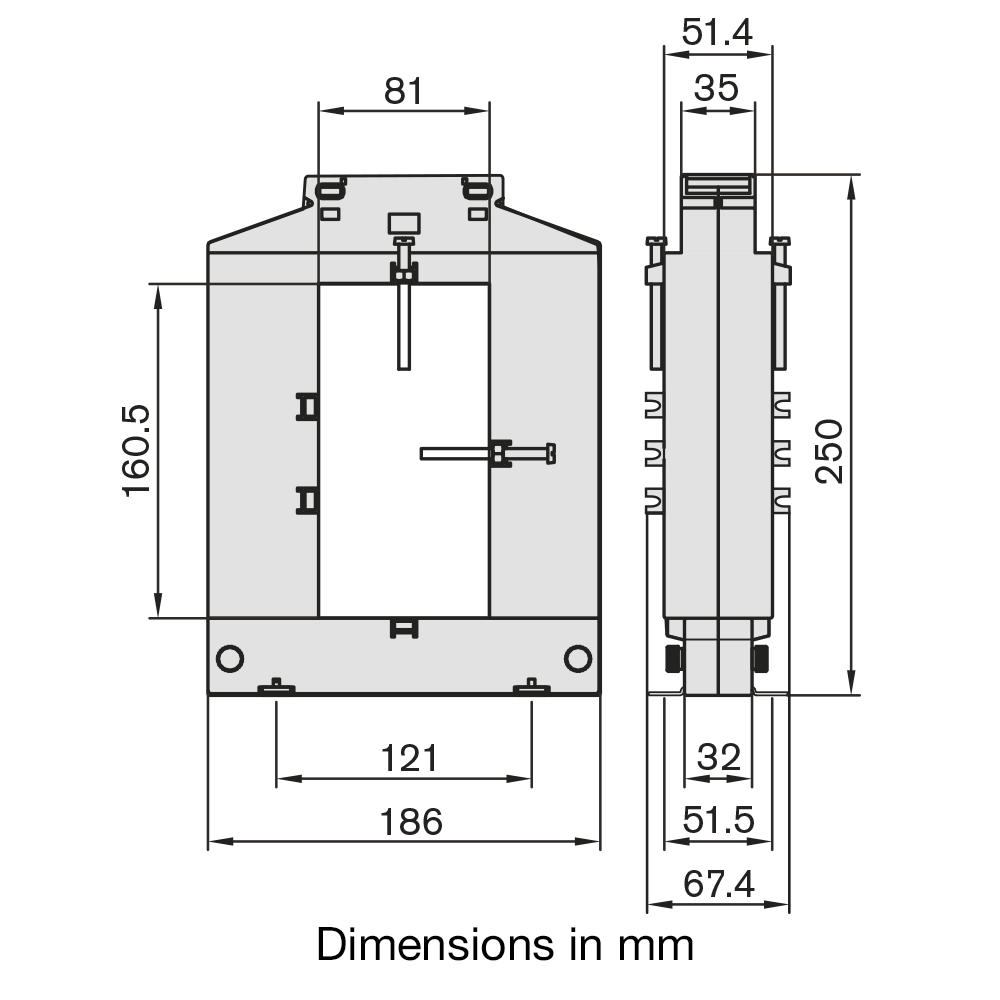

  • Busbar window : 80 x 160mm
  • Secondary terminals : Dual M5 Screws
  • Built-in Terminal covers
  • Housing Material Self extinguishing Nylon IEC185 classification VO according to UL-94
  • Weight : 3.50Kg"

Details

This product is no longer available - see bottom of page for alternative

The DBP816 split core current transformer is designed for installation into existing plants where removal of busbars/cable lugs prevent installation of standard current transformers.

Additional Information

Manufacturer Rayleigh Instruments

Downloads

Product Name / Options Price (ex VAT)
DBP816 - Single Phase Split Core CT - 2000 / 5A Call for Prices
DBP816 - Single Phase Split Core CT - 2500 / 5A Call for Prices
DBP816 - Single Phase Split Core CT - 3000 / 5A Call for Prices
DBP816 - Single Phase Split Core CT - 4000 / 5A Call for Prices
DBP816 - Single Phase Split Core CT - 5000 / 5A Call for Prices
