Alternating voltage or current
selectable measurements
Input voltage 500(600)V
Input current by external CT
either 1A or 5A
Programmable primary CT 5...8000A
(38 ranges)
TRUE RMS value measurement

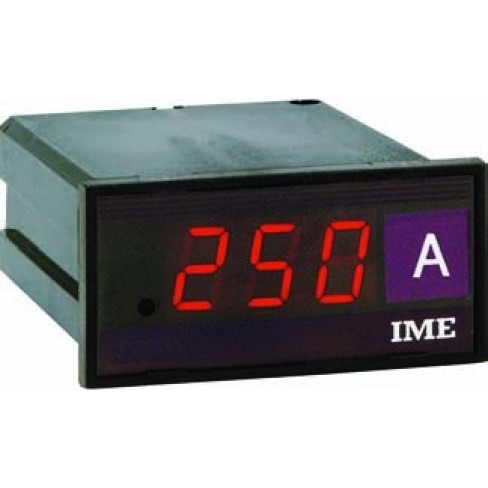

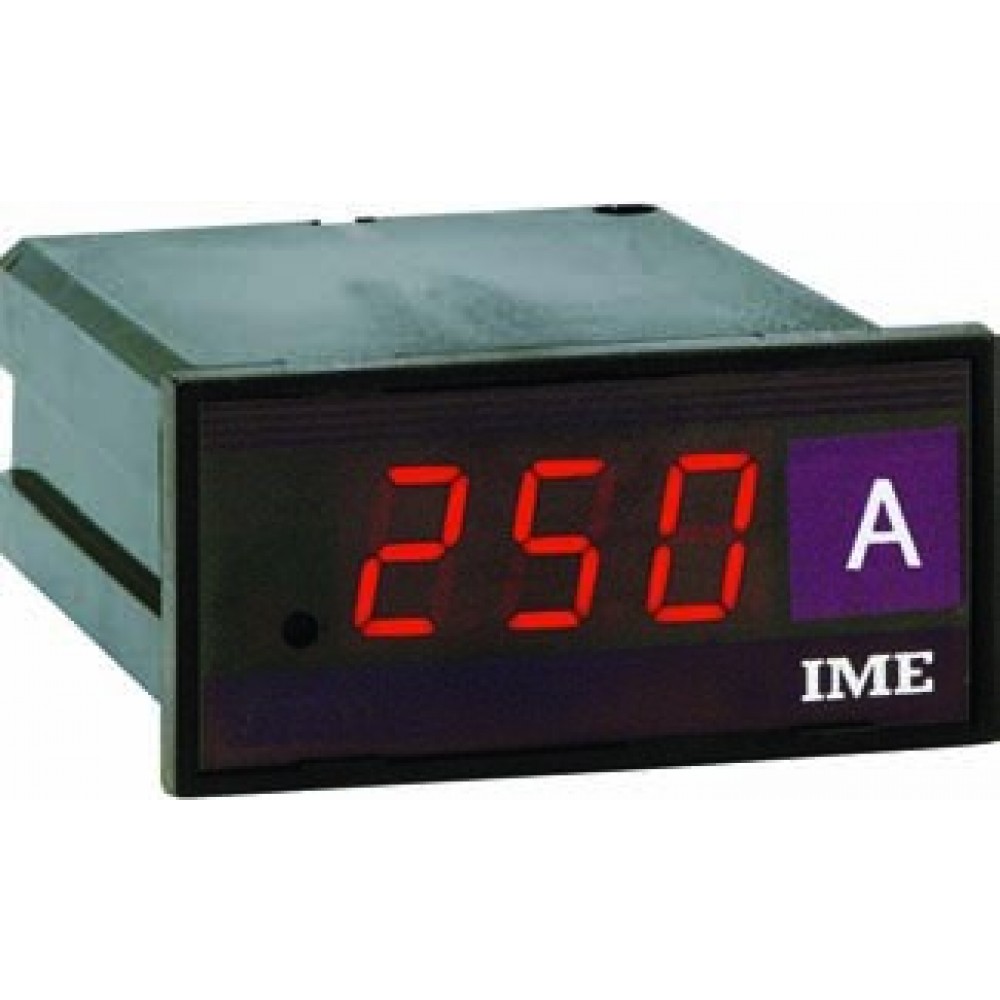

![](https://www.rayleigh.com/media/wysiwyg/DG3G.png)
DISPLAY
Tipe of display: 7 segments, red LED’s
Digit height: 14mm
N° of display points: 1.000 (3 digit)
Maximum display: 999
Engineering unit: A or kA or V (adhesive label)
Decimal point: automatic (see table)
Overrange indication: simultaneous lighting of 3 decimal points
Overrange: input > 1,2In or 1,2Un
Resolution: see table
Accuracy (referred to full scale): ± 1%+1 digit
Display update: 2,9s
INPUT
VOLTAGE
Connection: direct
Rated voltage Un: 500V
Measuring range: 10...600V
Rated burden: ≤ 0,1VA
CURRENT
Connection: by external CT 5A or 1A
Rated current In: 5A – 1A
Measuring range: 0,1...6A(In 5A) – 0,02...1,2A (In1A)
Rated burden: ≤ 0,6VA
Measure: true RMS value
Input signal waveform: symmetric wave
Type: sinusoidal, distorted sinusoidal, partialized SCR, square
