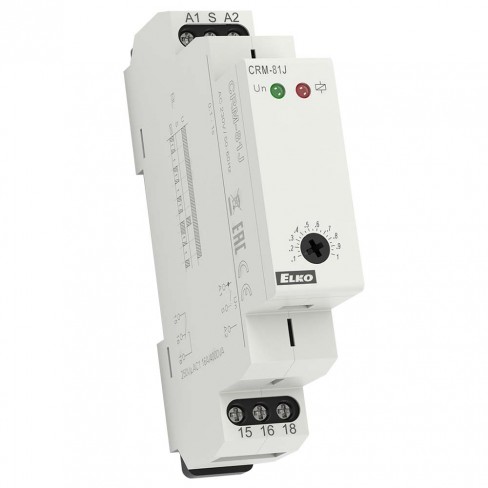

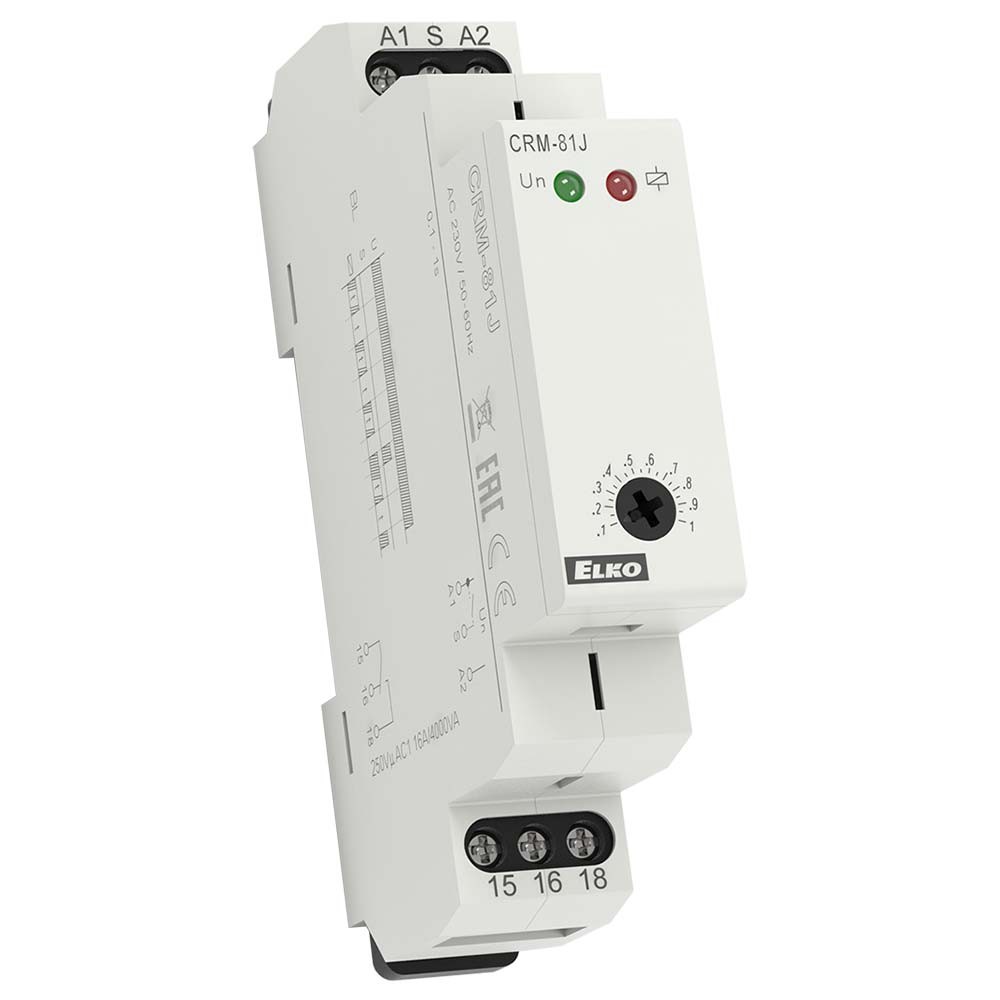

Elko CRM-81J Single Function Time Relay - 3 functions and 6 time ranges - 1x changeover SPDT (AgNi / Silver Alloy)

Features

  • Functions - ZR - delay ON / ZN - delay OFF / BL- cycler 1:1
  • Supply terminals - A1 - A2
  • Voltage range - AC/DC 12…240V (AC 50…60Hz) - UNI MODEL
  • Burden - AC 0.7…3VA / DC 0.5…1.7W
  • Voltage range - AC 230V / 50…60Hz - 230 MODEL

Details

Single-function and single-time relay with possibility of fine time setting by a potentiometer (within the frames of a particular time range) it is suitable for applications where function and time requirements are known beforehand time switch, possible to be used for pump decay time after switching heating off, switching of fans.

Choice of 3 functions:
1) ZR - delay ON
2) ZN - delay OFF
3) BL - cycler 1:1

Every function can be controlled by supply voltage or control input.

Choice of 6 time ranges:
(0.1s…1s / 1s…10s / 6s…60s / 1min…10min / 6min…60min / 1h…10hrs)

Universal supply voltage AC/DC 12 - 240 V or AC 230 V
Output contact : CRM-81J: 1 x changeover 16 A
CRM-83J : 3 x changeover 8 A
Output indication : red LED
1-MODULE, DIN rail mounting

Examples of order:

CRM-81J/230, ZR 10s
voltage 230V, ZR, 1…10s, 1 x changeover

CRM-83J/UNI, BL 1h
voltage UNI, cycler, 6min…1h., 3 x changeover

Additional Information

Manufacturer Elko
Product Name / Options Price (ex VAT)
Elko CRM-81J/230 Single Function Time Relay - AC 230 V / 50 - 60 Hz Call for Prices

Elko CRM-81J/UNI Single Function Time Relay - AC/DC 12 - 240 V (AC 50 - 60 Hz) Call for Prices
