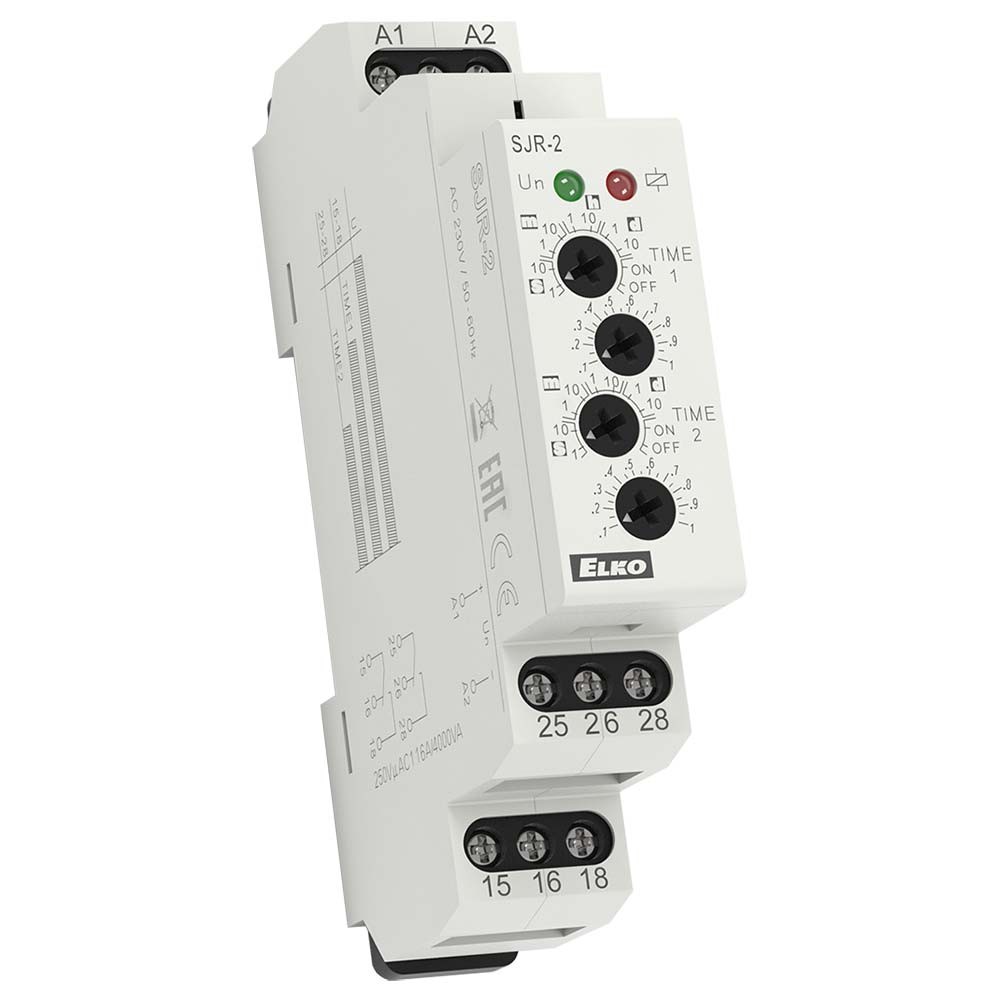

Elko SJR-2 Doublestage Delay Unit Time Relays - Two State Delay Unit

Features

  • Number of functions: 2 x delay ON
  • Time ranges: 0.1s…10 days
  • Number of contacts: 2 x changeover/ DPDT (AgNi / Silver Alloy)
  • Burden: AC 0.7…3VA / DC 0.5…1.7W

Details

For gradual switching of heavy powers (e.g. el.heating), prevents current strokes in the main.

Function: 2 x Delay ON (2 time relays in one).

Time scale 0.1s…10 days divided into 10 time ranges:
0.1s…1s / 1s…10s / 0.1min…1min / 1min…10min / 0.1h…1h / 1h…10hrs / 0.1 day …1 day / 1 day…10 days / ON / OFF

Times t1 and t2 are independently adjustable
t1 and t2 are switched on after supply voltage connection
Rought time setting via rotary switch
Voltage range: AC 230V or AC/DC 12…240V
Output contact: 2 x changeover /DPDT 16A
Output indication: multifunction red LED, flashing at certain states
1-MODULE, DIN rail mounting

Additional Information

Manufacturer Elko
Product Name / Options Price (ex VAT)
Elko SJR-2/230 Doublestage Delay Unit Time Relay AC 230 V / 50 - 60 Hz Call for Prices

Elko SJR-2/UNI Doublestage Delay Unit Time Relay AC/DC 12 - 240 V (AC 50 - 60 Hz) Call for Prices
