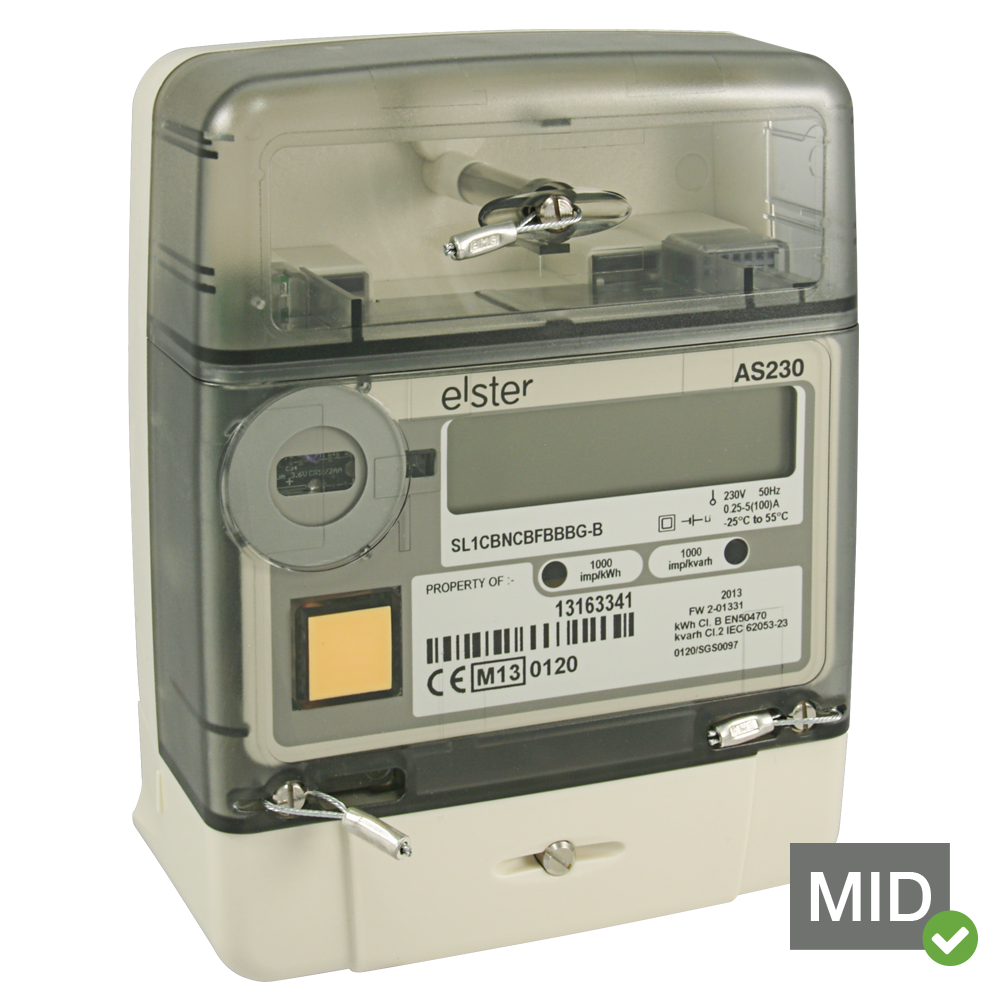

Elster AS230 MID Certified Single Phase Class 1 Solar GSM AMI Generation Meter (UK504-047)

Features

This product is no longer available - click the links below to see our range of MID Certified Meters

MID Certified kWh Energy Meters

MID Certified Multifunction Energy Meters


  • EN 62053-21: Accuracy Class 1 or Class 2 EC Directive 2004/22/EC (MID): Class A or B
  • kWh, kvarh and kVAh Energy Measurement
  • Import/Export
  • Modular WAN/LAN Capability
  • Home Automation Network allowing access to: Gas, Water, Other Meter Data, Customer Display
  • Comprehensive Tariff Structure
  • Maximum Demand Registration
  • Load Limiting
  • Load Profiling Recording (4 channels)
  • Instrumentation Profile Recording (8 channels)
  • Extensive Security Features
  • Storage for External Register Values
  • Product Design Life 20 Years
  • Optical Communications Port
  • Internal Clock with Battery Back-up
  • Compact Design
  • IP53 in accordance with IEC 60529:1989

Details

This product is no longer available - click the links below to see our range of MID Certified Meters

MID Certified kWh Energy Meters

MID Certified Multifunction Energy Meters


The AMI domestic Smart Meter offers multi-tariff metering and flexible modular communications to interface directly to the utility via a Wide Area Network (WAN) or Local Area Network (LAN) and to connect to a consumer's Home Automation Network (HAN).

The module provides the platform for many different forms of communications including GSM/GPRS, PLC and Lower Power Radio for WAN/LAN communications.

The modular and optical port can be used to read data from other meters meter connected to the HAN. The meter measures a combination of import and export active energy, four-quadrant reactive energy and apparent energy. Extensive security features protect the meter and module from fraud or tampering. Instrumentation values are available to aid meter commissioning. The meter records up to 120 days of load and instrumentation profile data in shared storage. Power Master Unit software provides a Windows™ graphical interface for programming the meter and reading meter data.

Meters can be supplied to meet EC Directive 2004/22/EC
(MID): accuracy Class A or Class B.
kvarh is to EN 62053-23 Class 2 or 3.
The meter has an ingress protection rating of IP53 to IEC 60529:1989.

Additional Information

Manufacturer Elster
Product Name / Options Price (ex VAT)
This product is sold exclusively via our distribution network please contact our Sales Department on 01245 428500 on to find out your nearest stockist or if you are interested in becoming a distributor Call for Prices

Elster AS230 Single Phase Class 1 Solar GSM AMI Generation Meter (UK504-047) Call for Prices
