  • IME TA221 Single Phase Current Transformer

More Views

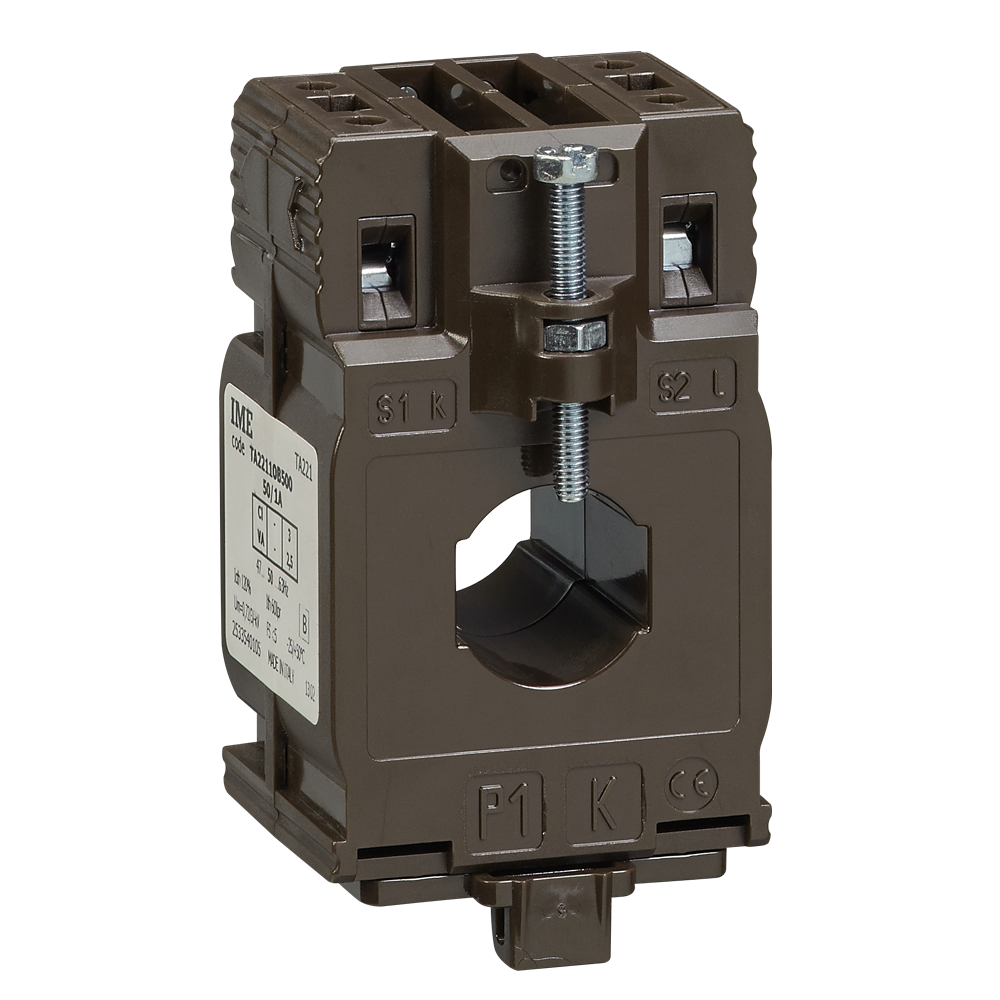

IME TA221 Single Phase Current Transformer

Features

  • Range 40 to 300A (1A or 5A Secondary)
  • Busbar window 20.5 x 10.5mm
  • Cable aperture Ø21mm
  • With fixing feet & DIN rail adaptor
  • Secondary terminals M6 screws and 4.8x0.8mm fast-on
  • Weight 320g
  • Optional sealable terminal cover (ATACOP13)

Details

Measuring current transformer with moulded fixing feet/DIN rail. The TA221 current transformer is supplied with busbar mounting bracket, has a 21mm diameter (20.5x10.5mm) aperture, and is available with primary currents from 40 to 300A.

Additional Information

Manufacturer IME (BTicino)

Downloads

Files

TA221 Data Sheet TA221 Data Sheet NT811-02
Product Name / Options Price (ex VAT)
TA22150B750 (75/5A) Call for Prices
TA22150B800 (80/5A) Call for Prices
TA22150C100 (100/5A) Call for Prices
TA22150C120 (120/5A) Call for Prices
TA22150C125 (125/5A) Call for Prices
TA22150C150 (150/5A) Call for Prices
TA22150C160 (160/5A) Call for Prices
TA22150C200 (200/5A) Call for Prices
TA22150C250 (250/5A) Call for Prices
TA22150C300 (300/5A) Call for Prices
TA22110B750 (75/1A) Call for Prices
TA22110B800 (80/1A) Call for Prices
TA22110C100 (100/1A) Call for Prices
TA22110C120 (120/1A) Call for Prices
TA22110C125 (125/1A) Call for Prices
TA22110C150 (150/1A) Call for Prices
TA22110C160 (160/1A) Call for Prices
TA22110C200 (200/1A) Call for Prices
TA22110C250 (250/1A) Call for Prices
TA22110C300 (300/1A) Call for Prices
