  • IME Conto D4-Pd Class 1 Three Phase Network 63 Direct Connected kWh Energy Meter

More Views

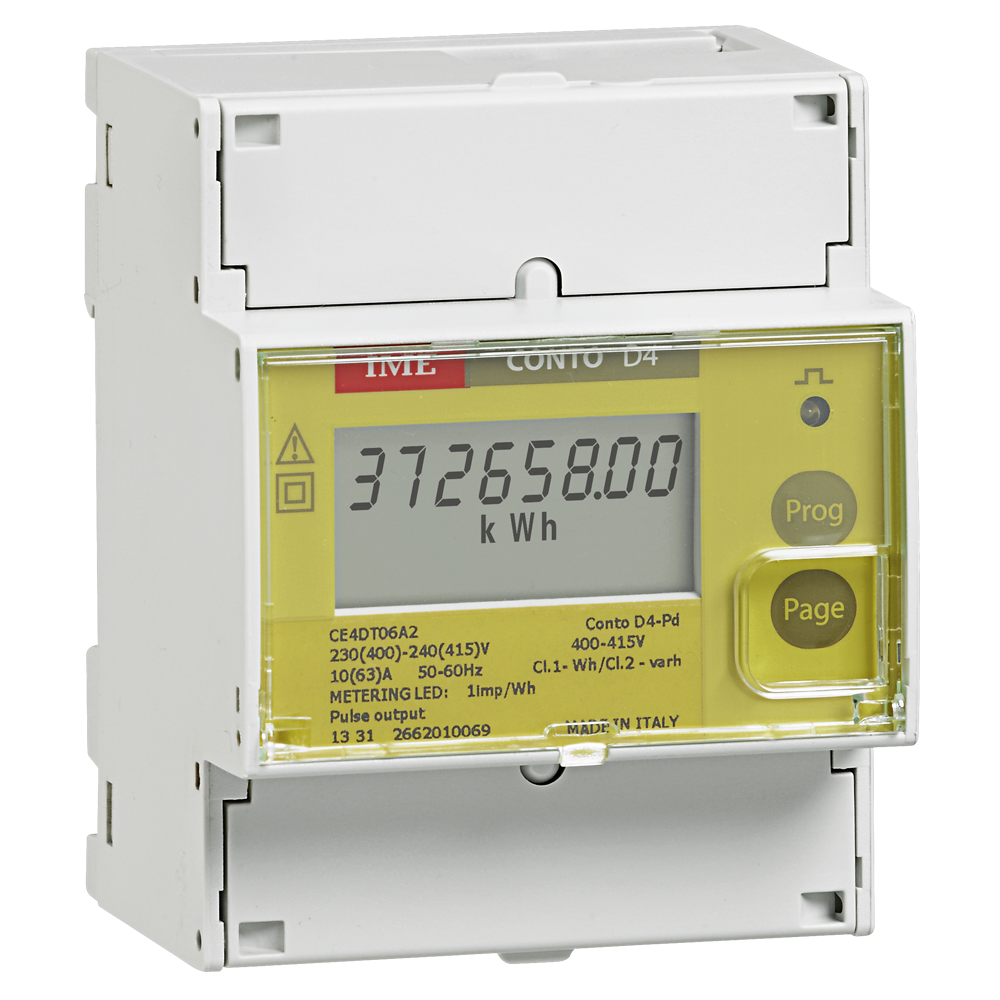

IME Conto D4-Pd Class 1 Three Phase Network 63 Direct Connected kWh Energy Meter

Features

  • Kilowatt hour meter / active energy meter
  • 4 module DIN rail mounting
  • Direct connection up to 63A
  • 3 phase 3 or 4 wire network unbalanced load
  • Active energy class 1
  • Reactive energy class 2
  • Total active energy
  • Total reactive energy
  • Partial active energy (resettable)
  • Partial reactive energy (resettable)
  • Phase current
  • Phase – neutral voltage
  • Phase – phase voltage
  • Active power (KW)
  • Reactive power (KVar)
  • Apparent power (KVA)
  • Phase active power (KW)
  • Phase reactive power (KVar)
  • Active power demand
  • Active power max demand
  • Frequency
  • Power factor
  • Hours run meter (resettable)
  • 230V/400V 50Hz measured voltage
  • 8 digit LCD display
  • Self supplied auxiliary
  • Pulsed output or RS485 communications

Details

The Conto D4-Pd range of Class 1 three phase kilowatt hour meter.
The Conto D4-Pd is a 70mm DIN Rail mounted KWh (Kilowatt hour) active energy meter with either a pulse output or Modbus RS485 communications.
63A (per phase) direct input, on a 230/415V 50/60Hz system.

Additional Information

Manufacturer IME (BTicino)

Downloads

Files

Conto D4-Pd Instruction Manual Conto D4-Pd Instruction Manual - 10781564 09-10
Conto D4-Pd Data Sheet Conto D4-Pd Data Sheet - NT669-V13
Product Name / Options Price (ex VAT)
IME Conto D4-Pd CE4DT06A2 63A 230/400Vac Kwh Meter With Pulse Output Call for Prices
IME Conto D4-Pd CE4DT06A4 63A 230/400Vac Kwh Meter With RS485 Modbus - 230(400)-240(415)V Call for Prices
