IME Delta D2-L RD1A Two Module Earth Leakage Relay With 1 Alarm & 1 Relay SPDT Output

More Views

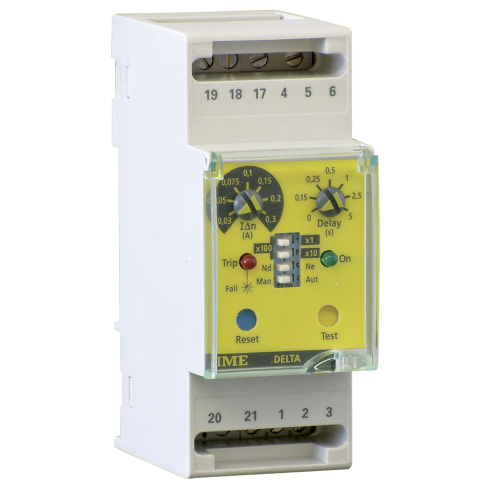

IME Delta D2-L RD1A Two Module Earth Leakage Relay With 1 Alarm & 1 Relay SPDT Output

Features

DIN Rail mounting Earth Leakage Relay
Residual current
Selectable set point 30mA...30A (19 ranges)
Adjustable time delay 0.15-5s (30mA setting = 0s)
Use with DEL...N Range Of Core Balance Current Transformers

- | Add to Compare

Details

Instantaneous
(t = 0) at IΔn 30mA
Selectable set point
30mA...30A (19 ranges)
Field-selectable negative or positive security (fail safe)
Automatic permanent test
Manual or automatic reset
(3 restart attempts)

Output

Relay : 1 SPDT contact
Contact range : 5A 250Vac cosϕ 1 - 3A 250Vac cosϕ 0.4 - 5A 30Vdc
Negative security (normally de-energised relay) or positive security fail safe
(normally energised relay) : selectable by dip switch

Auxiliary Supply

Rated value Uaux : 24V - 48V - 115V - 230V - 240V - 400V
Tolerance : 0.85...1,1Uaux - 40...60V (Uaux 48V)
Rated frequency : 50Hz
Tolerance : 47…63Hz
Rated burden : ≤ 2.5VA
Rated value Uaux : 20...150Vdc
Protected against incorrect polarity
Rated burden : ≤ 2.5W
Immunity to short interruption of supply voltage up to 300ms (Rated Uaux)

Additional Information

Manufacturer	IME (BTicino)

Downloads

Files

IME Delta D2-L Datasheet
IME Delta D2-L User Guide

Product Name / Options	Price (ex VAT)
IME Delta D2-L RD1AF12B - 115V ca/ac Auxillary Supply 0,03-30A cl.A	Call for Prices
IME Delta D2-L RD1AF13B - 230V ca/ac Auxillary Supply 0,03-30A cl.A	Call for Prices
IME Delta D2-L RD1AF14B - 240V ca/ac Auxillary Supply 0,03-30A cl.A	Call for Prices
IME Delta D2-L RD1AF15B - 400V ca/ac Auxillary Supply 0,03-30A cl.A	Call for Prices
IME Delta D2-L RD1AF1HB - 20-150Vdc / 40-60Vac Auxillary Supply 0,03-30A cl.A	Call for Prices
