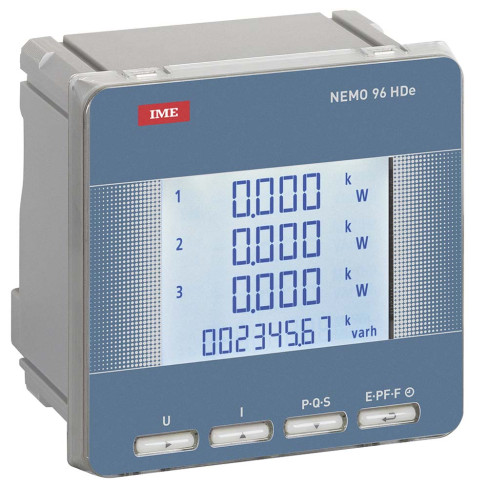

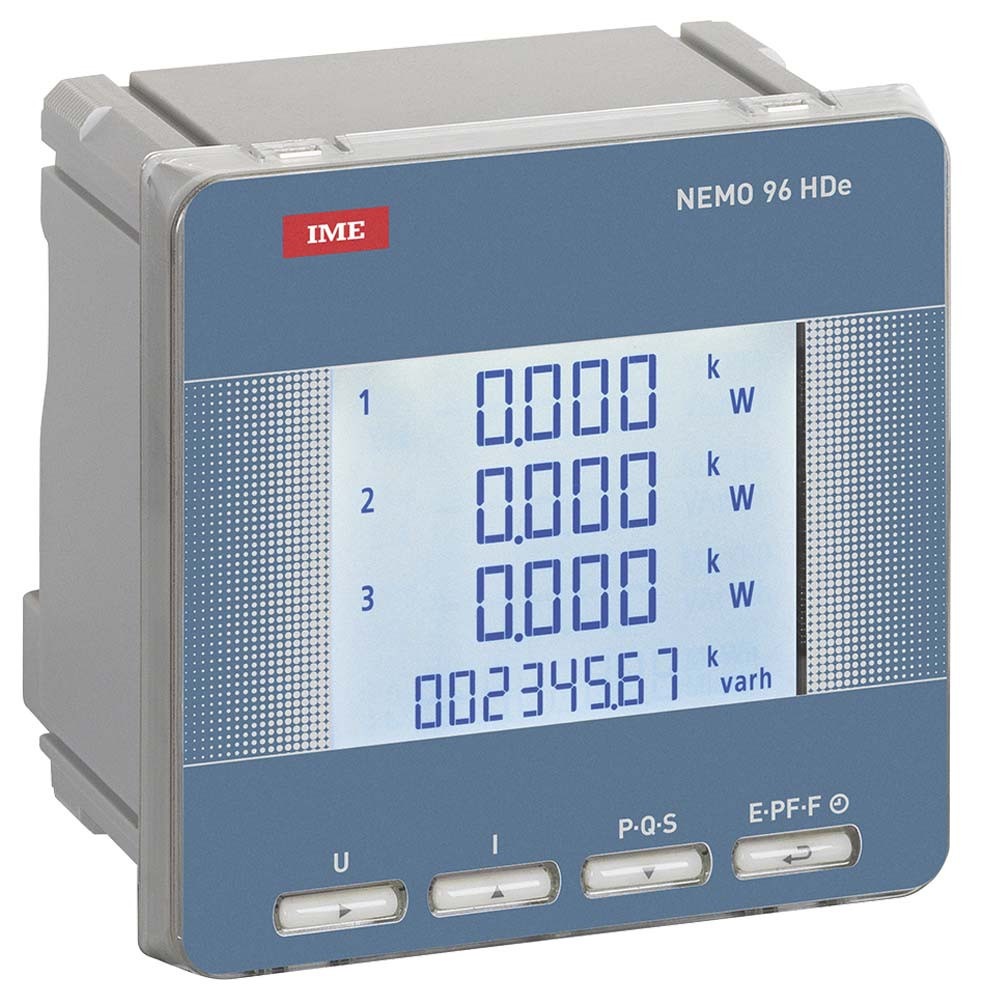

IME Nemo 96HDe Panel Mounted Single & Three Phase Network Multifunction Meter

More Views

IME Nemo 96HDe Panel Mounted Single & Three Phase Network Multifunction Meter

Features

DIN 96 panel mounted
High-definition backlit LCD display
Three-phase line 50...460V (phase-phase)
Connection on dedicated CT
Programmable external CT ratio
Active energy cl.1
Pulse output
RS485 ModBus RTU/TCP communication
Phase sequence correction, diagnostic
Ethernet communication with external interface*

- | Add to Compare

Details

DIN 96 Panel Mounted Single & Three Phase Network Multifunction Meter suitable for low voltage applications.

Displayed Parameters

Phase and linked voltage
Min. and max. phase voltage
Neutral and phase current
Current demand and current max. demand
Frequency
Power factor
Active, reactive, apparent, distorting power
Power demand and power max. demand
Positive and negative active and reactive energy
Working hours and minutes
THDV and THDI

Additional Information

Manufacturer	IME (BTicino)

Downloads

Files

Nemo 96HDe - Data Sheet (3.6MB)
Nemo 96HDe - User Manual (3.7MB)

Product Name / Options	Price (ex VAT)
MF96E06 - Nemo 96HDe (Self supplied, Pulse and RS485 output)	Call for Prices
