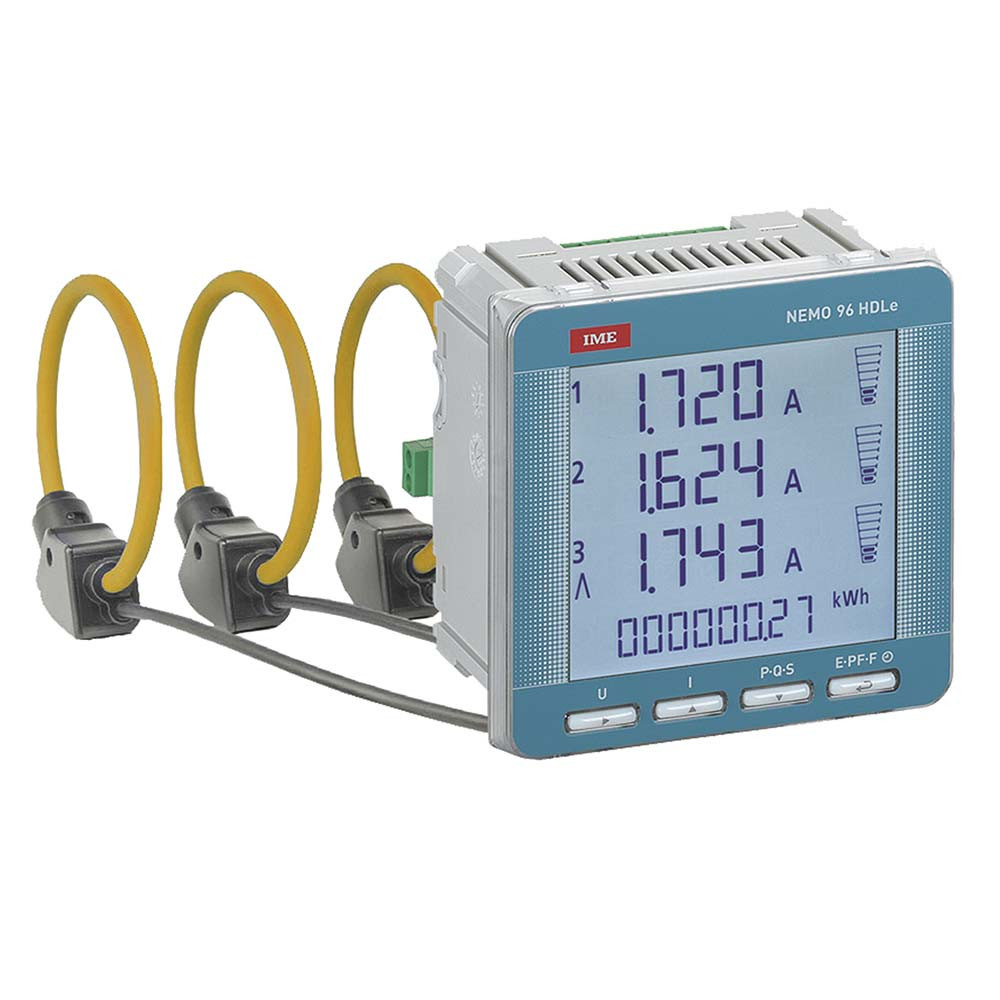

IME Nemo 96HDLe (Rogowski Kit) Panel Mounted Three Phase Network Multifunction Meter

More Views

IME Nemo 96HDLe (Rogowski Kit) Panel Mounted Three Phase Network Multifunction Meter

Features

Rogowski meausurement KIT
Network monitor + 3 Rogowski current sensors
80mm, 142mm or 190mm coil diameter
Three-phase network 80...500V (phase-phase)
Connection on dedicated Rogowski current sensors
Programmable external VT ratio
Programmable external current sensors
Active energy cl.1 (multifunction + current sensor)
Pulse output
RS485 communication
Phase sequence correction, diagnostic

- | Add to Compare

Details

Rogowski measurement KIT - Network monitor + 3 Rogowski current sensors.

80mm, 142mm or 190mm coil diameter versions available

Displayed Parameters

Phase and linked voltage
Min. and max. phase voltage
Neutral and phase current
Current demand and current max. demand
Frequency
Power factor
Active, reactive phase power
Power demand and power max. demand
Total and partial, positive active and reactive energy
Negative, active and reactive energy
Working hours and minutes
THDV and THDI
Harmonic analysis
Voltage and current crest factor

Available Plug-in Extension Modules

RS485
RS232
BACnet
ETHERNET
PROFIBUS
M-BUS
LONWORKS
MEMORY

Additional Information

Manufacturer	IME (BTicino)

Downloads

Files

Nemo 96HDLe (Rogowski Kit) - Data Sheet (1.7MB)

Product Name / Options	Price (ex VAT)
KRNEMOHDLE080 - Nemo 96HDLe Rogowski Kit (3x 80mm Diameter Coils)	Call for Prices
KRNEMOHDLE142 - Nemo 96HDLe Rogowski Kit (3x 142mm Diameter Coils)	Call for Prices
KRNEMOHDLE190 - Nemo 96HDLe Rogowski Kit (3x 190mm Diameter Coils)	Call for Prices
