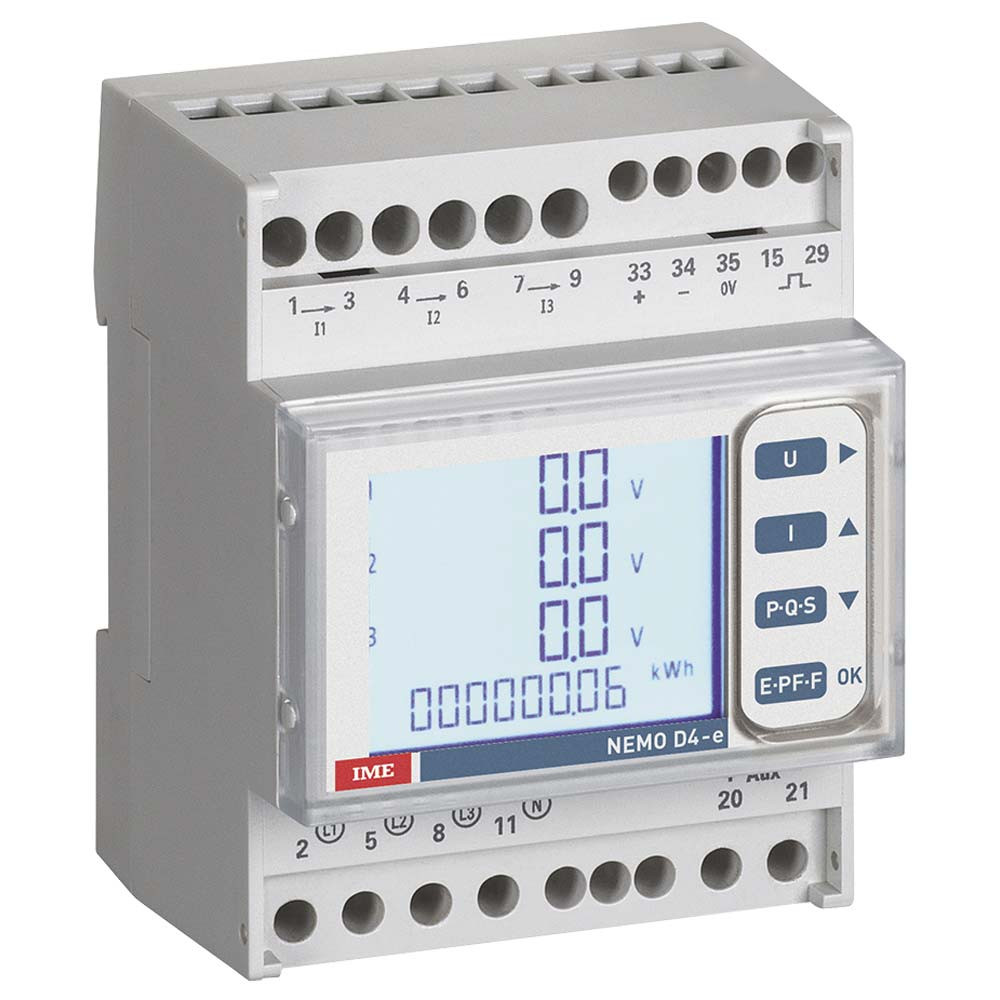

IME Nemo D4-e Single Phase & Three Phase Multifunction Network Monitor

Features

  • 4 Module DIN Rail mounted
  • High-definition backlit LCD display
  • Three-phase line 50...460V (phase-phase)
  • Connection on dedicated CT
  • Programmable external CT ratio
  • Active energy cl.1
  • Phase sequence correction, diagnostic

  • Pulse output (MFD4E06 only)
  • RS485 ModBus RTU/TCP communication (MFD4E06 only)
  • Ethernet communication with external interface* (MFD4E06 only)

Details

The Nemo D4-e is a 4 module DIN rail mounting Single Phase & Three Phase multifunction network monitor. It has 3 current transformer inputs, programmable ratios, phase sequence correction and is suitable for low-voltage network applications.

The MFD4E06 version also has Pulse and RS485 Modbus RTU/TCP communicationbuilt-in

Displayed Parameters

  • Phase and linked voltage
  • Min. and max. phase voltage
  • Neutral and phase current
  • Current demand and current max. demand
  • Frequency
  • Power factor
  • Active, reactive, apparent, distorting power
  • Power demand and power max. demand
  • Positive and negative active and reactive energy
  • Working hours and minutes
  • THDV and THDI

Additional Information

Manufacturer IME (BTicino)
Product Name / Options Price (ex VAT)
MFD45A00 - Nemo D4-e (No Communication) Call for Prices

MFD4E06 - Nemo D4-e (with Pulse and RS485 Modbus output) Call for Prices
