IME RD1EP Delta 72-S Earth Leakage Residual Current Device 72x72mm

More Views

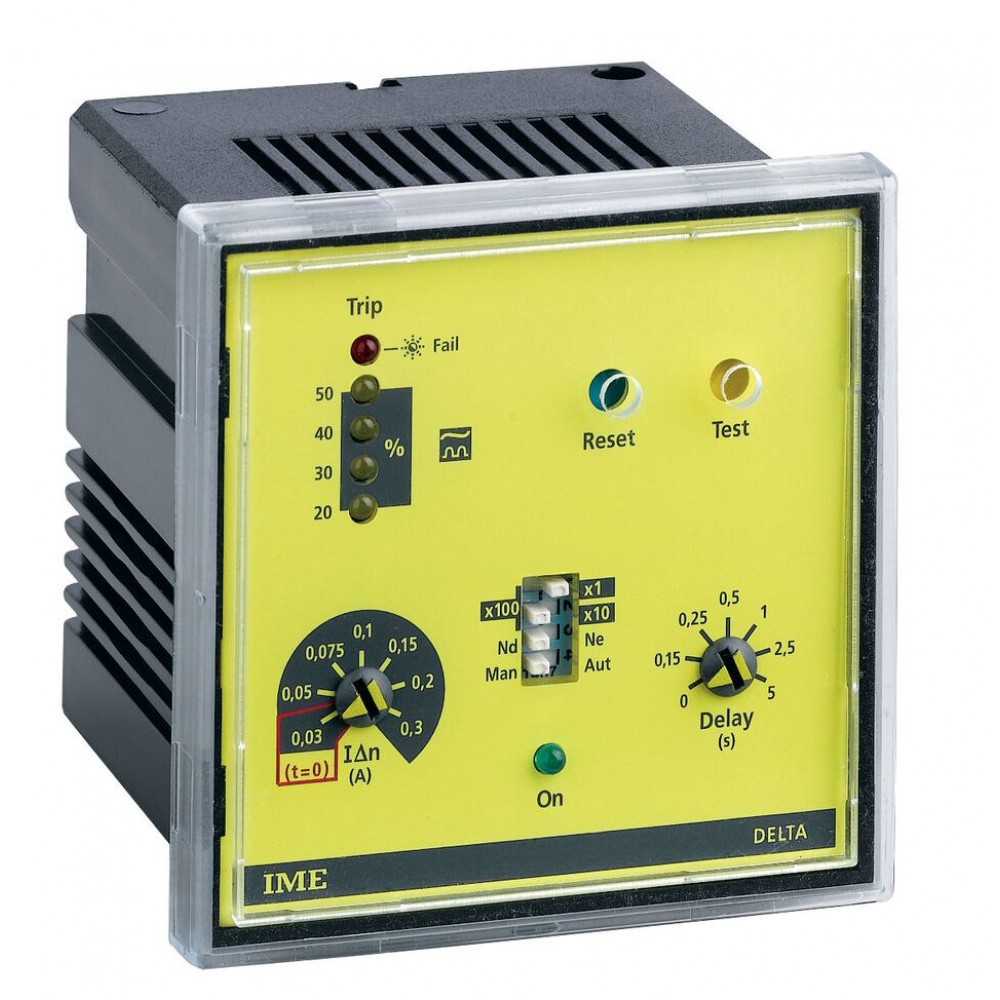

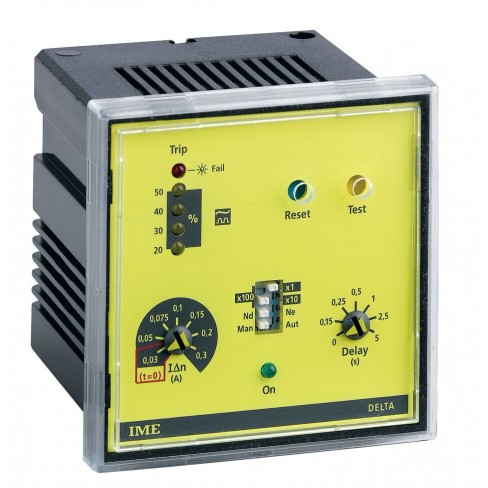

IME RD1EP Delta 72-S Earth Leakage Residual Current Device 72x72mm

Features

Instantaneous (t = 0) at IΔ n 30mA
Selectable set point 30mA…30A (19 ranges)
Instantaneous display as percentage of IΔ n

- | Add to Compare

Details

Instantaneous
(t = 0) at IΔ n 30mA
Selectable set point
30mA…30A (19 ranges)
Instantaneous display as percentage of IΔ n
Pre-alarm threshold
Field-selectable negative or positive security (fail safe)
Automatic permanent test
Manual or automatic reset (3 restart attempts)

Input

Connection : low voltage lines, with series TD transformer
Waveform I∆n : sinusoidal (type AC) or chopped pulsating with superimposed d.c. (type A) according to EN60947-2 (annex B and M) IEC60947-2
Rated frequency fn : 50Hz
Working frequency : 47...63Hz

Auxiliary Supply

Rated value Uaux: 24V - 48V - 115V - 230V - 240V - 400V
Tolerance : 0.85...1.1Uaux - 40...60V (Uaux 48V)
Rated frequency : 50Hz
Tolerance: 47…63Hz
Rated burden: ≤ 2.5VA
Rated value Uaux : 20...150Vdc
Protected against incorrect polarity
Rated burden: ≤ 2.5W
Immunity to short interruption of supply voltage up to 150ms (Rated Uaux)

Additional Information

Manufacturer	IME (BTicino)

Downloads

Files

IME RD1EP Delta 72-S Earth Leakage Datasheet

Product Name / Options	Price (ex VAT)
IME RD1EP11B 24V ca/ac Earth Leakage 1 Alarm + 1 Pre-Alarm (reset is manual and automatic)	Call for Prices
IME RD1EP12B 115V ca/ac Earth Leakage 1 Alarm + 1 Pre-Alarm (reset is manual and automatic)	Call for Prices
IME RD1EP13B 230V ca/ac Earth Leakage 1 Alarm + 1 Pre-Alarm (reset is manual and automatic)	Call for Prices
IME RD1EP14B 240V ca/ac Earth Leakage 1 Alarm + 1 Pre-Alarm (reset is manual and automatic)	Call for Prices
IME RD1EP15B 400V ca/ac Earth Leakage 1 Alarm + 1 Pre-Alarm (reset is manual and automatic)	Call for Prices
IME RD1EP1HB 20...150V cc/dc - 40...60Vca/ac Earth Leakage 1 Alarm + 1 Pre-Alarm (reset is manual and automatic)	Call for Prices
