  • IME RQ72E Single Phase Analogue Ammeter for Alternating Current, 72x72mm, Scale length 90°

More Views

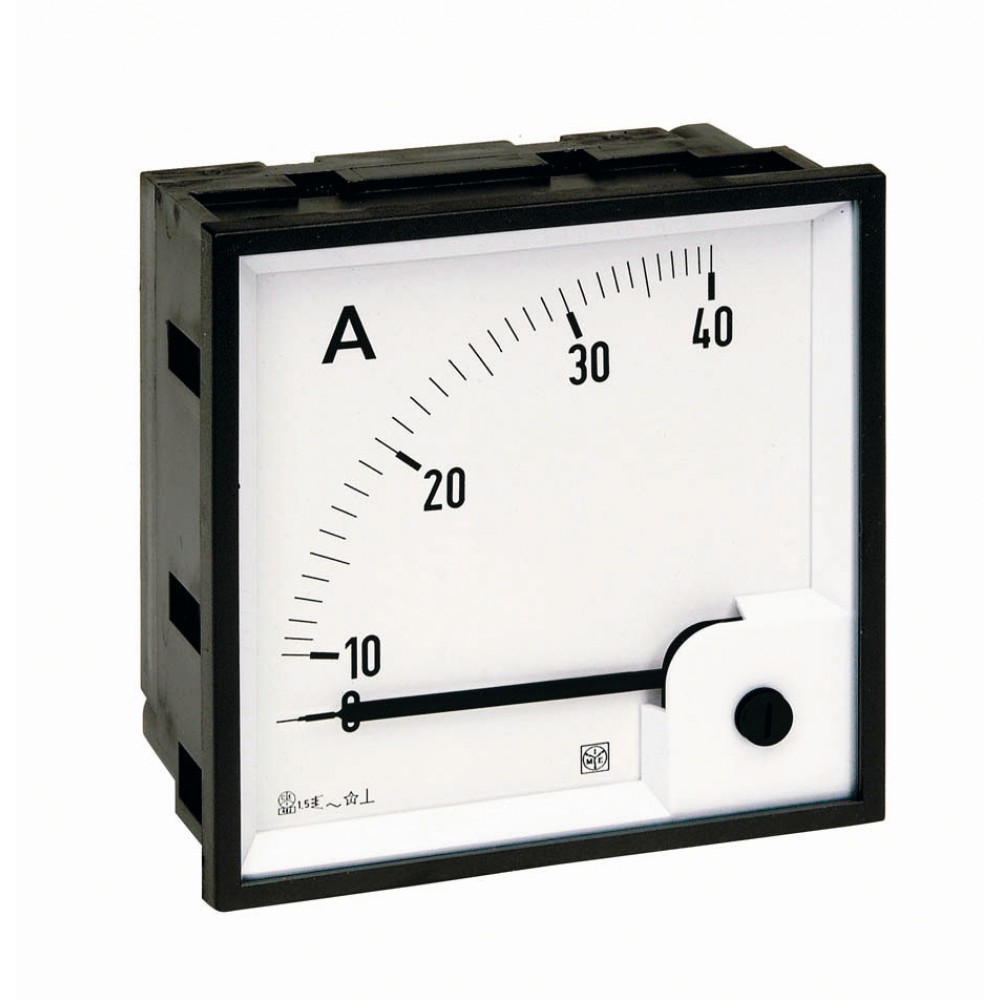

IME RQ72E Single Phase Analogue Ammeter for Alternating Current, 72x72mm, Scale length 90°

Features

  • Direct indication of input current or primary current of external current transformer
  • Interchangeable Scales
  • Standard Terminal Cover
  • Scale length 90°
  • Accuracy Class 1.5
  • Direct connection 1...100A
  • Input by external current transformer 5A or 1A
  • Degree of Protection IP52 (Front Panel) , IP20 (Enclosure), IP00 (Terminals)

Details

When ordering your Alternating Current Ammeter. 1) Specify the input Direct Connected (only allowed upto 60A) 5A Current Transformer Input 1A Current Transformer Input 2) Please specify the scale and unit of measurement ? 3) Please specify any overscale ? 4) Any Additional Analogue Instrument Optional Extras ?? OverScaling Red Line Scale Tropicalisation IP54 Protection Adjustable Red Pointer 90 Anti-Reflective Glass Unbreakable Glass Coloured Segment Heavily damped movement Non-standard scale division For standard Alternating Current Ammeters RQ please see the ordering codes below :

Additional Information

Manufacturer IME (BTicino)

Downloads

Product Name / Options Price (ex VAT)
IME RQ72E Alternating Current Ammeter 72x72 Din Cut Out Call for Prices

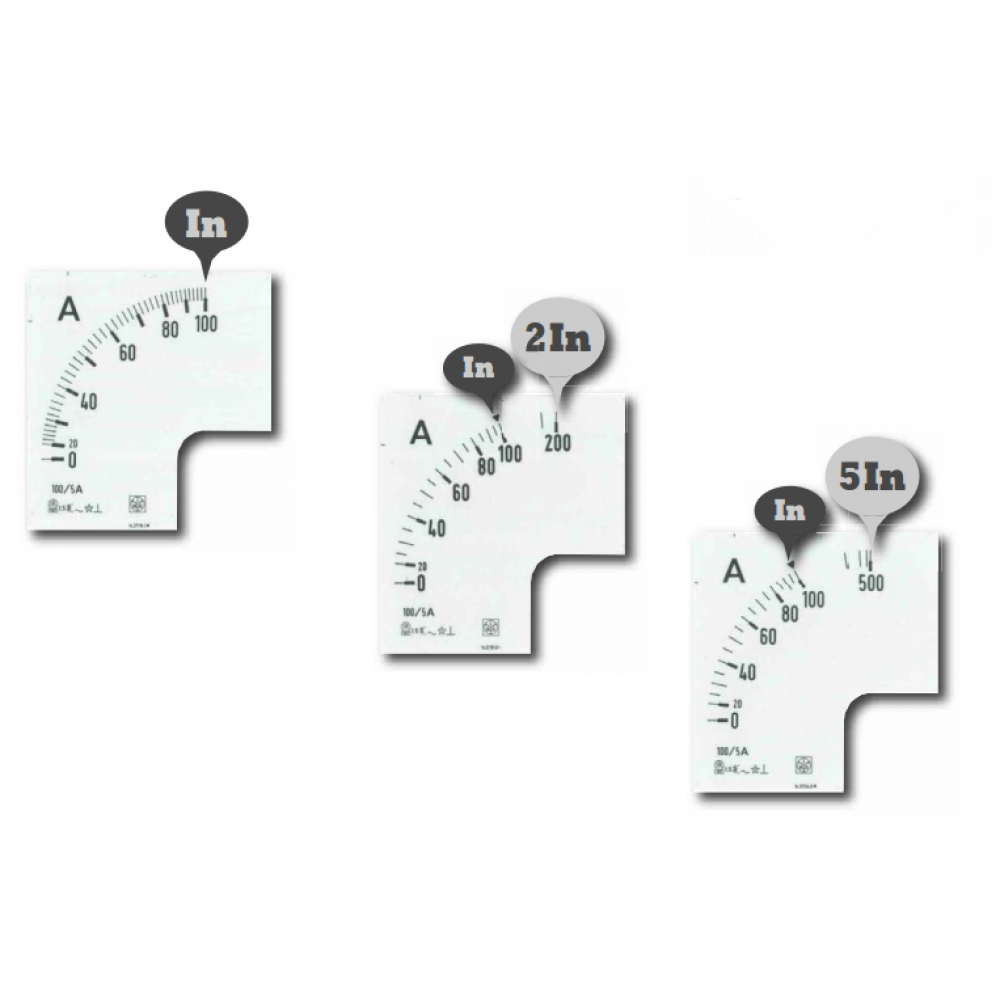

Add Optional Analogue Instrument Option Extra - Overscale None/x2/x5/x6 Call for Prices
Add Optional Analogue Instrument Option Extra - Red Line On Scale Call for Prices
Add Optional Analogue Instrument Option Extra - Adjustable Red Pointer - 90° Call for Prices
Add Optional Analogue Instrument Option Extra - IP54 Protection Call for Prices
Add Optional Analogue Instrument Option Extra - Tropicalisation Call for Prices
Add Optional Analogue Instrument Option Extra - Coloured Segment (Price Is Per Segment) Call for Prices
Add Optional Analogue Instrument Option Extra - Unbreakable Glass Call for Prices
Add Optional Analogue Instrument Option Extra - Anti-Reflective Glass Call for Prices
Add Optional Analogue Instrument Option Extra - Heavily Damped Movement Call for Prices
Add Optional Analogue Instrument Option Extra - Vibration proof execution Call for Prices
