  • IME RQ96SEL ANRB Sequencymeter for symmetric 3-phase network

More Views

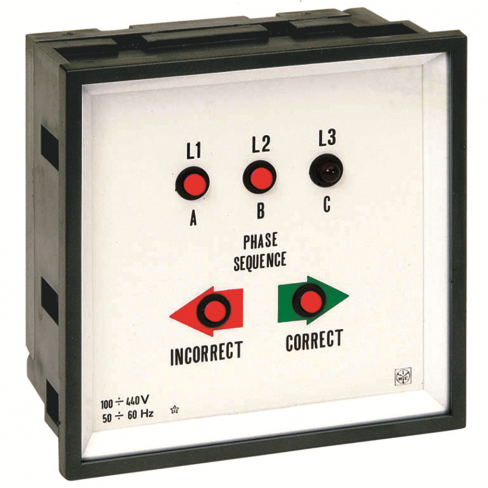

IME RQ96SEL ANRB Sequencymeter for symmetric 3-phase network

Features

  • AC Voltage Supply :- 100..440V 50/60Hz
  • Front Housing Protection :- IP52
  • Terminal Protection :- IP20* with terminal covers
  • Dimensions :- 96x96x69mm

Details

Indication of correct cyclic phase sequence Signalling of phase failure Continuous Working LED Display DISPLAY Display: red LED’s Phase presence: LED “L1-L2-L3” on Correct cyclic sequence: “CORRECT” LED on Wrong cyclic sequence: “INCORRECT” LED on Phase failure: “CORRECT and INCORRECT” LED’s contemporaneously on with turning off of LED corresponding to failing phase (L1 or L2 orL3) INPUT Line voltage Un: 100...440V Rating frequency: 50-60Hz Working frequency: 47...63Hz Rated burden: ≤ 2VA INSULATION (EN/IEC 61010-1) Installation category: III Pollution degree: 2 Insulation rating voltage: 600V (fase-neutro) A.C. voltage test 4kV r.m.s. 50Hz/5s: III Considered circuits: all circuits and earth

Additional Information

Manufacturer IME (BTicino)

Downloads

Product Name / Options Price (ex VAT)
IME ANRB1 RQ96SEL Sequencymeter 100..440V 50-60Hz Call for Prices
IME ANRB11 RQ96SEL Tropicalized Sequencymeter 100..440V 50-60Hz Call for Prices
IME ANRB13 RQ96SEL IP54 Protection Sequencymeter 100..440V 50-60Hz Call for Prices
