  • IME TAID TAI233 Solid Core Single Phase Measuring Current Transformer

More Views

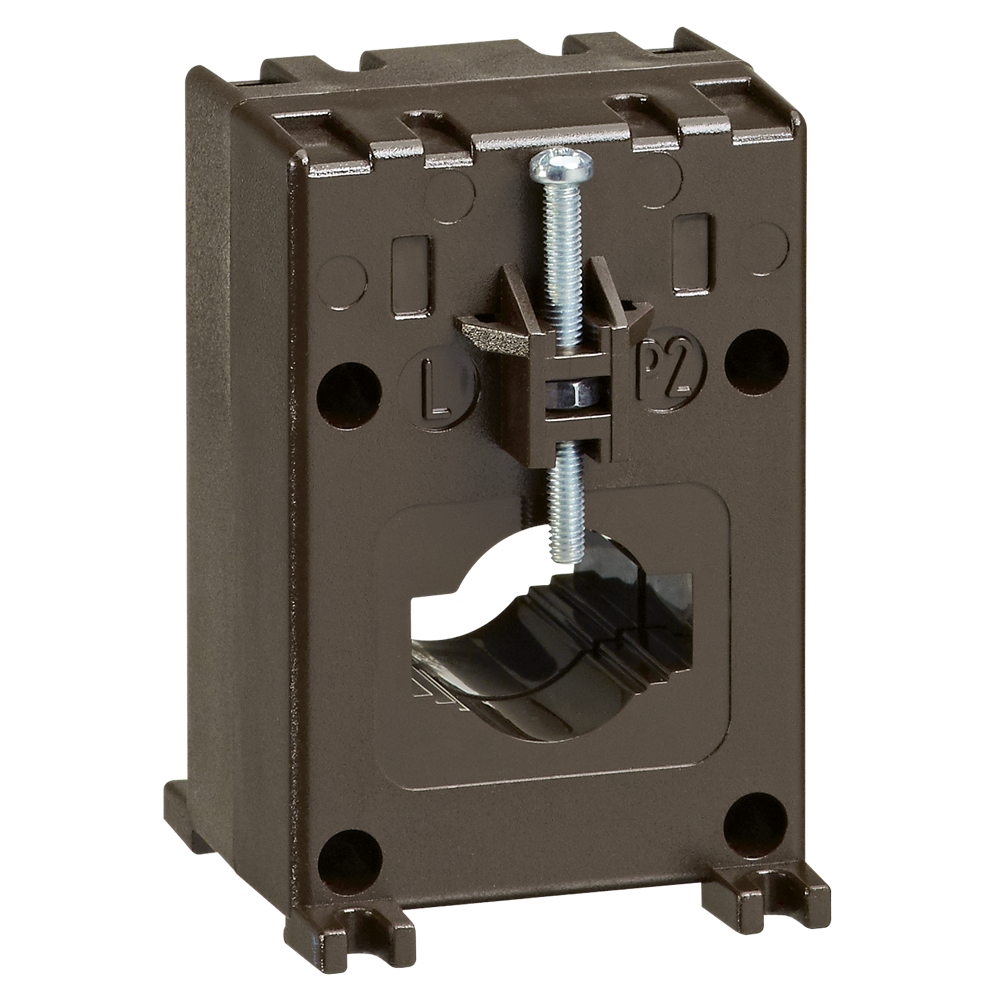

IME TAID TAI233 Solid Core Single Phase Measuring Current Transformer

Features

This product is no longer available - see bottom of page for alternative

  • Ranges: 40 to 600A (1A or 5A Secondary)

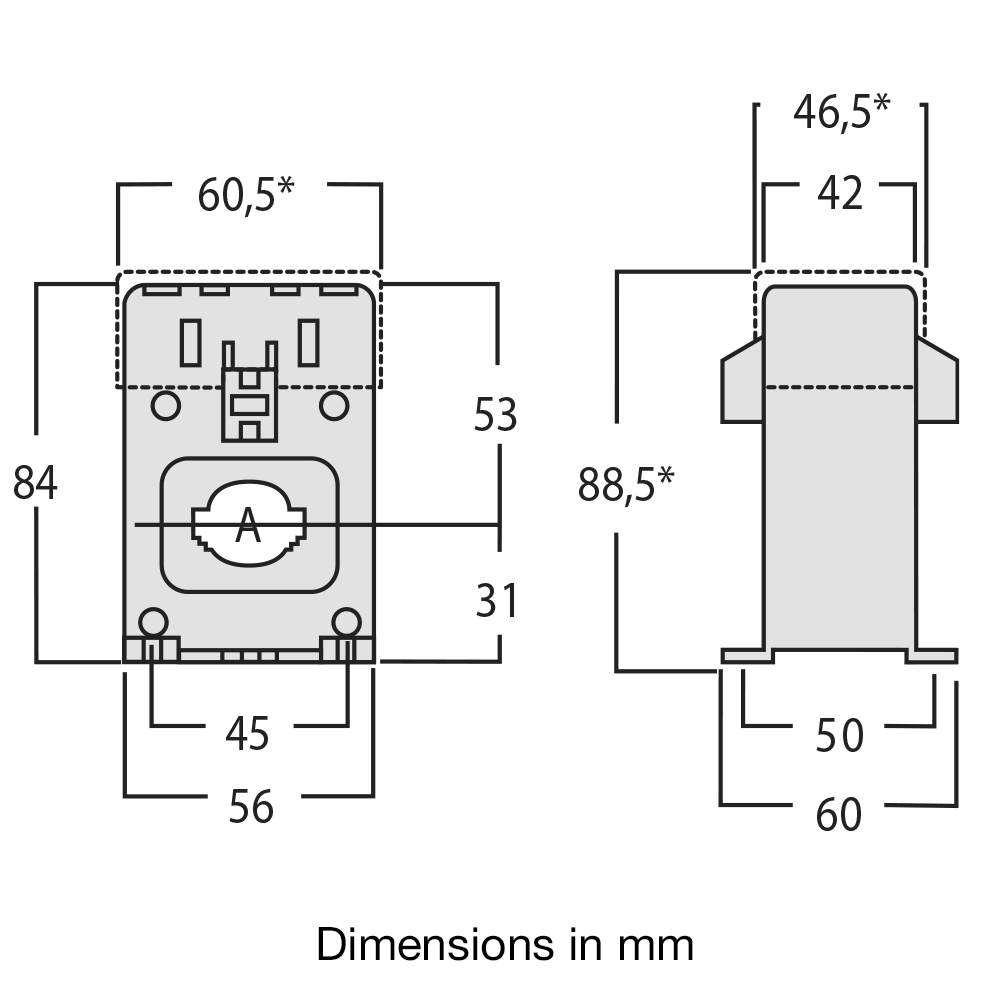

  • Busbar window 30.5 x 10.5mm, 25.5 x 11.5mm or 20.5 x 12.5mm
  • 22mm dia cable aperture
  • Moulded terminal cover
  • Moulded DIN rail clip/mounting feet
  • Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
  • Weight 400g
  • Optional sealable terminal cover (ATACOP01)

Details

This product is no longer available - see bottom of page for alternative

Measuring current transformer with moulded fixing feet/DIN rail clip and integral terminal cover. The TAID current transformer is supplied with busbar mounting bracket, has a 23mm diameter (30x10, 25x12 or 20x11mm busbar) aperture, and is available with primary currents from 40 to 600A.

Additional Information

Manufacturer IME (BTicino)

Downloads

Files

TAID Data Sheet TAID Data Sheet NT521-07
Product Name / Options Price (ex VAT)
This particular product has been discontinued by the manufacturer - please contact the sales office on 01245 428500 or email sales@rayleigh.com for the new equivalent model. Call for Prices

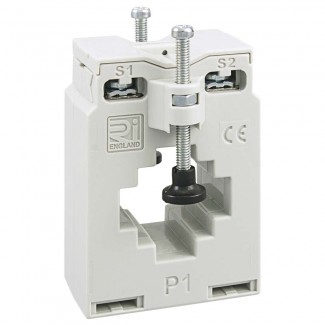

You may also be interested in the following product(s)
