  • IME TAQA TAQ2 Single Phase Winding Primary Current Transformer

More Views

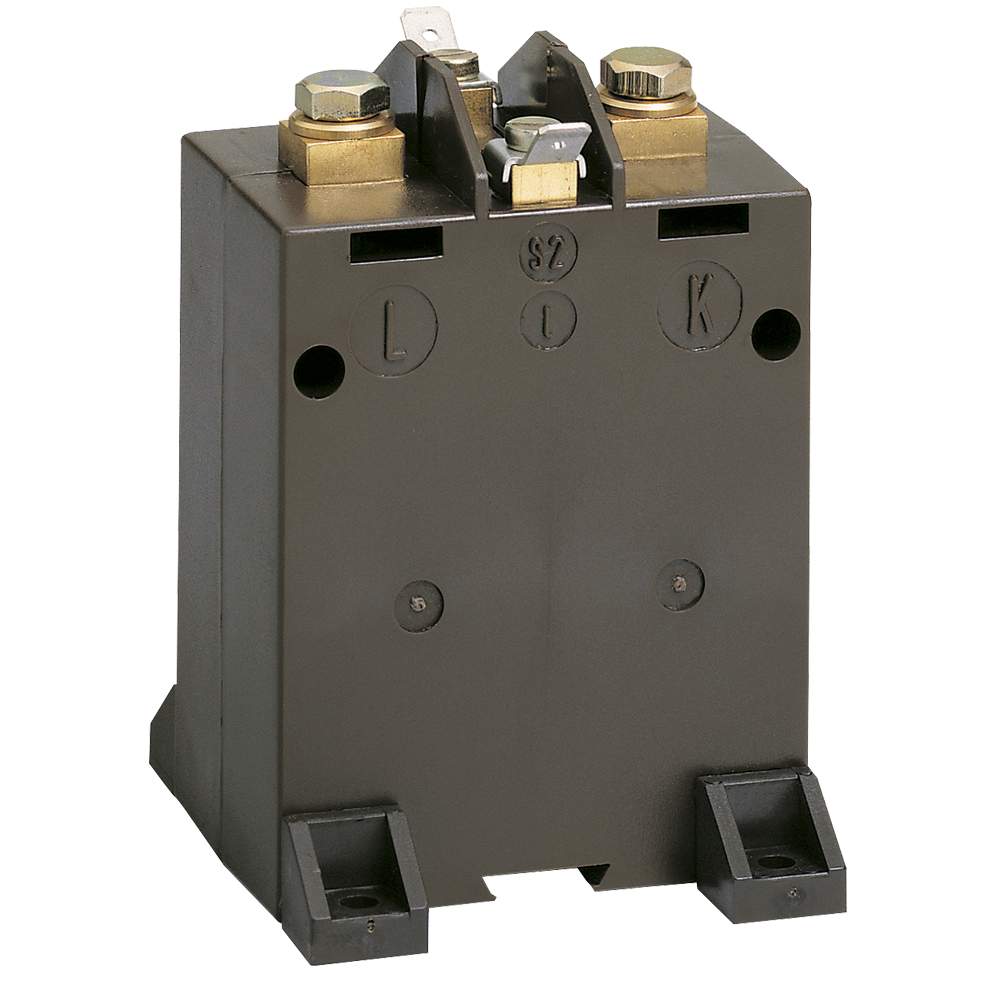

IME TAQA TAQ2 Single Phase Winding Primary Current Transformer

Features

  • Measuring current transformer
  • Winding primary
  • Primary current 5...80A
  • Secondary current 1 - 5A
  • Supplied with mounting feet
  • Primary terminals M6 screw
  • Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
  • Optional sealable terminal cover (ATACOP06)
  • Optional DIN rail clip (ATADIN01)
  • Weight 320g

Details

Single-phase current transformer Winding primary Primary current 5...80A Secondary current 1 - 5A Accuracy class: cl.0,5 - 1 Rated burden: 2VA (cl.0,5) 4VA (cl.1) HOUSING Housing material: self extinguishing polycarbonate Protection degree (EN60529): IP00 terminals (IP20 with sealable terminal cover), IP20 housing Option: sealable terminal cover Option: accessory for snap-on 35mm rail mounting Rail type: top hat TH35-15 (EN60715) Weight: 320 grams CONNECTIONS Primary winding: tightening by nut M6 Secondary winding: tightening by nut M4 Connections label: primary winding P1(K) – P2(L) secondary winding s1(k) – s2(l) DIMENSIONS

Additional Information

Manufacturer IME (BTicino)

Downloads

Product Name / Options Price (ex VAT)
IME TAQ2 TACAA100A100 Wound Primary Winding Single Phase Current Transformer 1/1A Call for Prices
IME TAQ2 TACAA100A250 Wound Primary Winding Single Phase Current Transformer 2.5/1A Call for Prices
IMA TAQ2 TAQA10A500 Wound Primary Winding Single Phase Current Transformer 5/1A Call for Prices
IME TAQ2 TAQA10B150 Wound Primary Winding Single Phase Current Transformer 15/1A Call for Prices
IME TAQ2 TAQA10B250 Wound Primary Winding Single Phase Current Transformer 25/1A Call for Prices
IME TAQ2 TAQA10B300 Wound Primary Winding Single Phase Current Transformer 30/1A Call for Prices
IME TAQ2 TAQA10B400 Wound Primary Winding Single Phase Current Transformer 40/1A Call for Prices
IME TAQ2 TAQA10B500 Wound Primary Winding Single Phase Current Transformer 50/1A Call for Prices
IME TAQ2 TAQA10B600 Wound Primary Winding Single Phase Current Transformer 60/1A Call for Prices
IME TAQ2 TACAA500A150 Wound Primary Winding Single Phase Current Transformer 1.5/5A Call for Prices
IME TAQ2 TACAA500A250 Wound Primary Winding Single Phase Current Transformer 2.5/5A Call for Prices
IME TAQ2 TAQA50A500 Wound Primary Winding Single Phase Current Transformer 5/5A Call for Prices
IME TAQ2 TAQA50B150 Wound Primary Winding Single Phase Current Transformer 15/5A Call for Prices
IME TAQ2 TAQA50B400 Wound Primary Winding Single Phase Current Transformer 40/5A Call for Prices
IME TAQ2 TAQA50B600 Wound Primary Winding Single Phase Current Transformer 60/5A Call for Prices
This particular product is being discontinued by the manufacturer - please contact the sales office on 01245 428500 or email sales@rayleigh.com for a new alternative. The models shown are what is left in stock. Call for Prices
