  • IME TAQC TAQ10 Wound Primary Single Phase Current Transformer

More Views

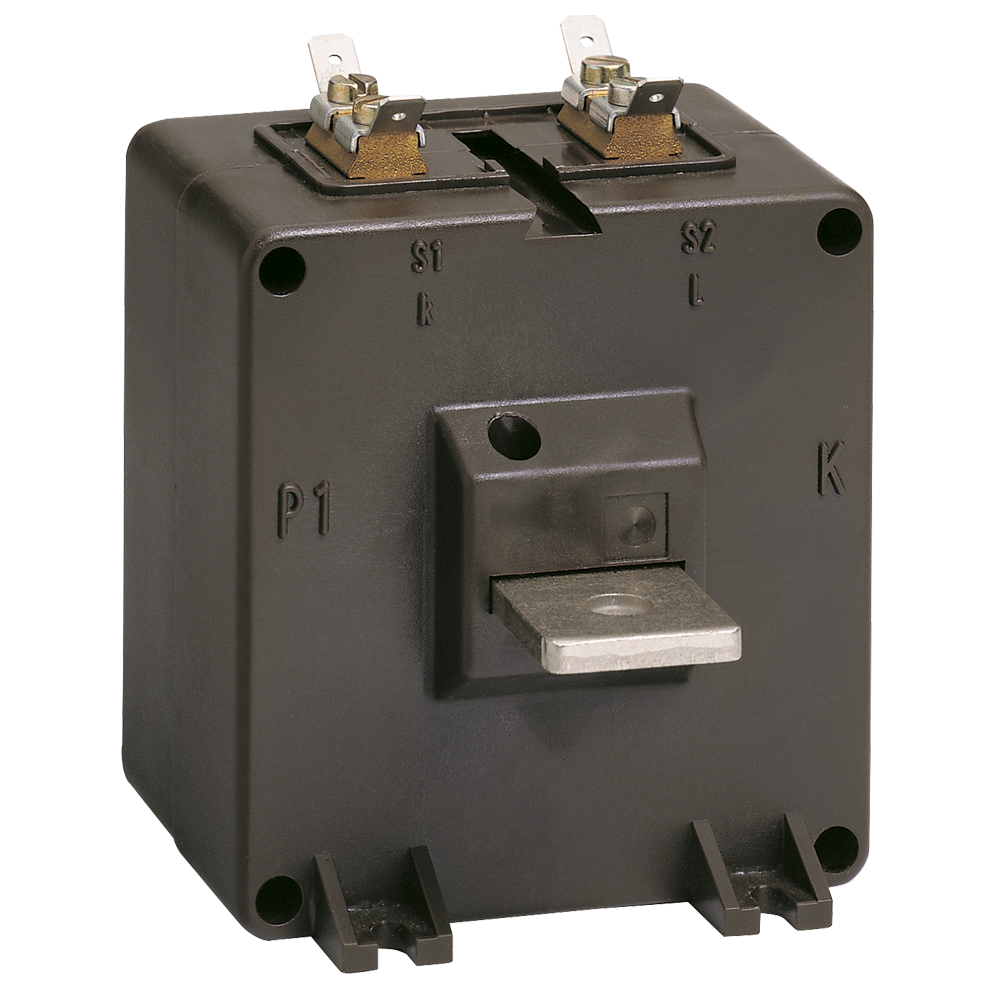

IME TAQC TAQ10 Wound Primary Single Phase Current Transformer

Features

  • Measuring current transformer (formerly TAQ10)
  • Ranges: 5 to 300A (1A or 5A Secondary)
  • Bar primary
  • Supplied with mounting feet
  • Primary bar connection 8.5mm firing holes
  • Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
  • Optional terminal cover (ATACOP03)
  • Weight 700g

Details

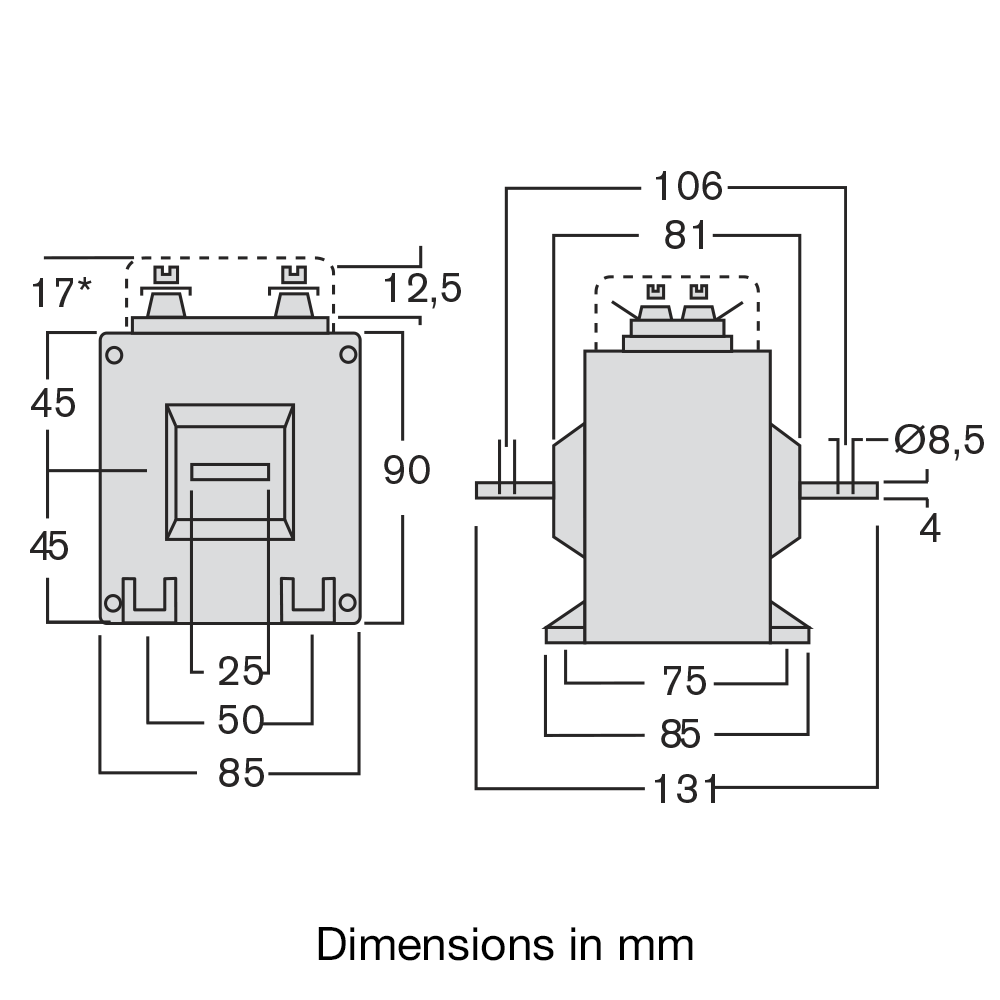

Single-phase current transformer Wound primary with built-in central bar 25x4mm Primary current 5...300A Secondary current 1 - 5A Accuracy class: cl.0,5 - 1 Rated burden: 10VA (cl.0,5) 15VA (cl.1) HOUSING Housing material: self extinguishing polycarbonate Protection degree (EN60529): IP20 housing, IP00 terminals (IP20 secondary terminals with sealable terminal cover) Option: sealable terminal cover Weight: 700 grams (Max.) CONNECTIONS Primary winding: built-in central bar Bar dimension: 25x4mm Fixing holes on bar: ø 8,5mm Secondary winding: double screw M4 Connections label: primary winding P1(K) – P2(L) secondary winding s1(k) – s2(l) DIMENSIONS

Additional Information

Manufacturer IME (BTicino)

Downloads

Product Name / Options Price (ex VAT)
TAQC10C150 150/1A Call for Prices
TAQC10A500 (5/1A) Call for Prices
TAQC10C100 (100/1A) Call for Prices
TAQC10B500 (50/1A) Call for Prices
TAQC10B300 (30/1A) Call for Prices
TAQC10B100 (10/1A) Call for Prices
TAQC10C250 (250/1A) Call for Prices
TAQC10B200 (20/1A) Call for Prices
TAQC10B800 (80/1A) Call for Prices
TAQC10C200 (200/1A) Call for Prices
TAQC10B600 (60/1A) Call for Prices
TAQC10B750 (75/1A) Call for Prices
IME TAQ10 TAQC50A500 Wound Primary Winding Single Phase Current Transformer 5/5A Call for Prices
TAQC50B100 (10/5A) Call for Prices
IME TAQ10 TAQC50B150 Wound Primary Winding Single Phase Current Transformer 15/5A Call for Prices
IME TAQ10 TAQC50B200 Wound Primary Winding Single Phase Current Transformer 20/5A Call for Prices
TAQC50B250 (25/5A) Call for Prices
TAQC50B300 (30/5A) Call for Prices
TAQC50B400 (40/5A) Call for Prices
TAQC50B500 (50/5A) Call for Prices
TAQC50B600 (60/5A) Call for Prices
IME TAQ10 TAQC50B700 Wound Primary Winding Single Phase Current Transformer 70/5A Call for Prices
IME TAQ10 TAQC50B750 Wound Primary Winding Single Phase Current Transformer 75/5A Call for Prices
TAQC50B800 (80/5A) Call for Prices
TAQC50C100 (100/5A) Call for Prices
IME TAQ10 TAQC50C120 Wound Primary Winding Single Phase Current Transformer - 120/5A Call for Prices
IME TAQ10 TAQC50C150 Wound Primary Winding Single Phase Current Transformer - 150/5A Call for Prices
TAQC50C200 (200/5A) Call for Prices
IME TAQ10 TAQC50C250 Wound Primary Winding Single Phase Current Transformer - 250/5A Call for Prices
IME TAQ10 TAQC50C300 Wound Primary Winding Single Phase Current Transformer - 300/5A Call for Prices
