  • IME TAWC TAS125P Single Phase Protection Class 5P5 5P10 5P15 5P20 Current Transformer

More Views

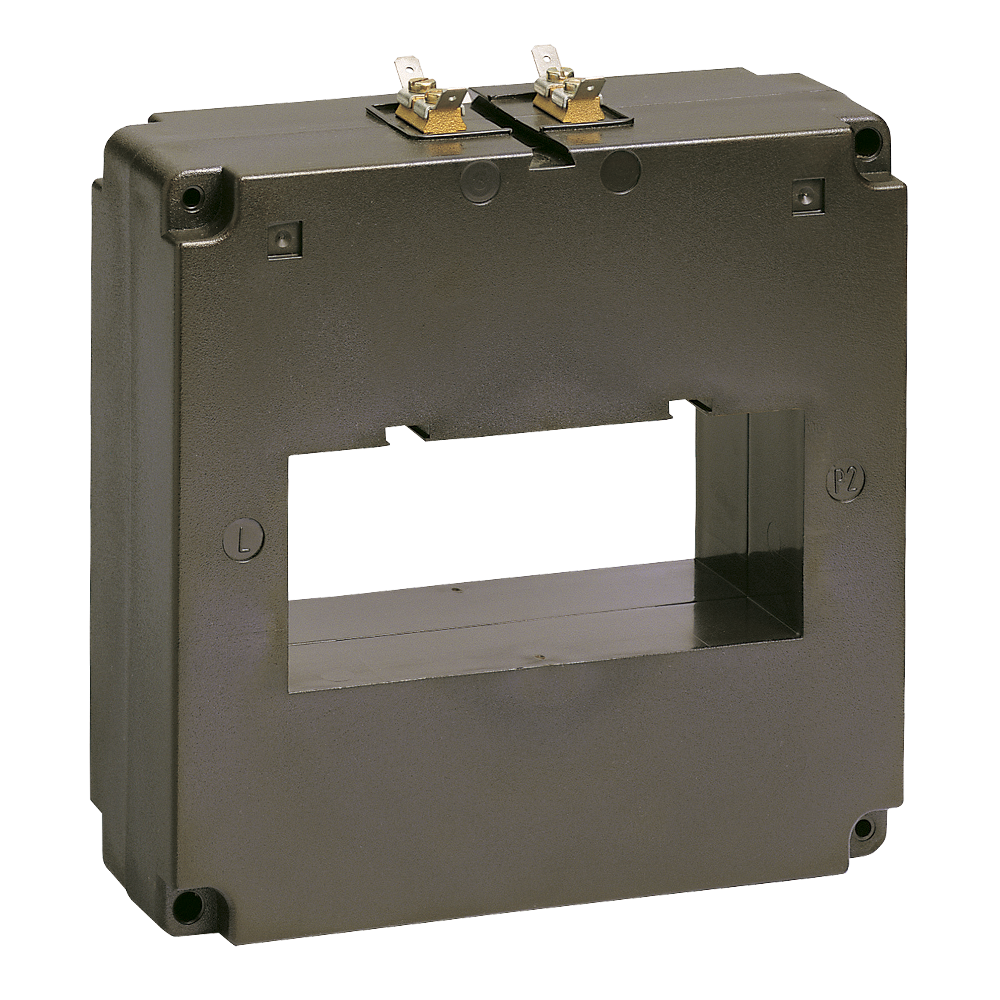

IME TAWC TAS125P Single Phase Protection Class 5P5 5P10 5P15 5P20 Current Transformer

Features

  • Protection current transformer (formerly TAS125P)
  • Ranges: 400 to 4000A (1A or 5A Secondary)
  • Busbar window 127 x 54mm
  • Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
  • Supplied with fixing feet
  • Optional sealable terminal cover (ATACOP03)
  • Weight 3600g

Details

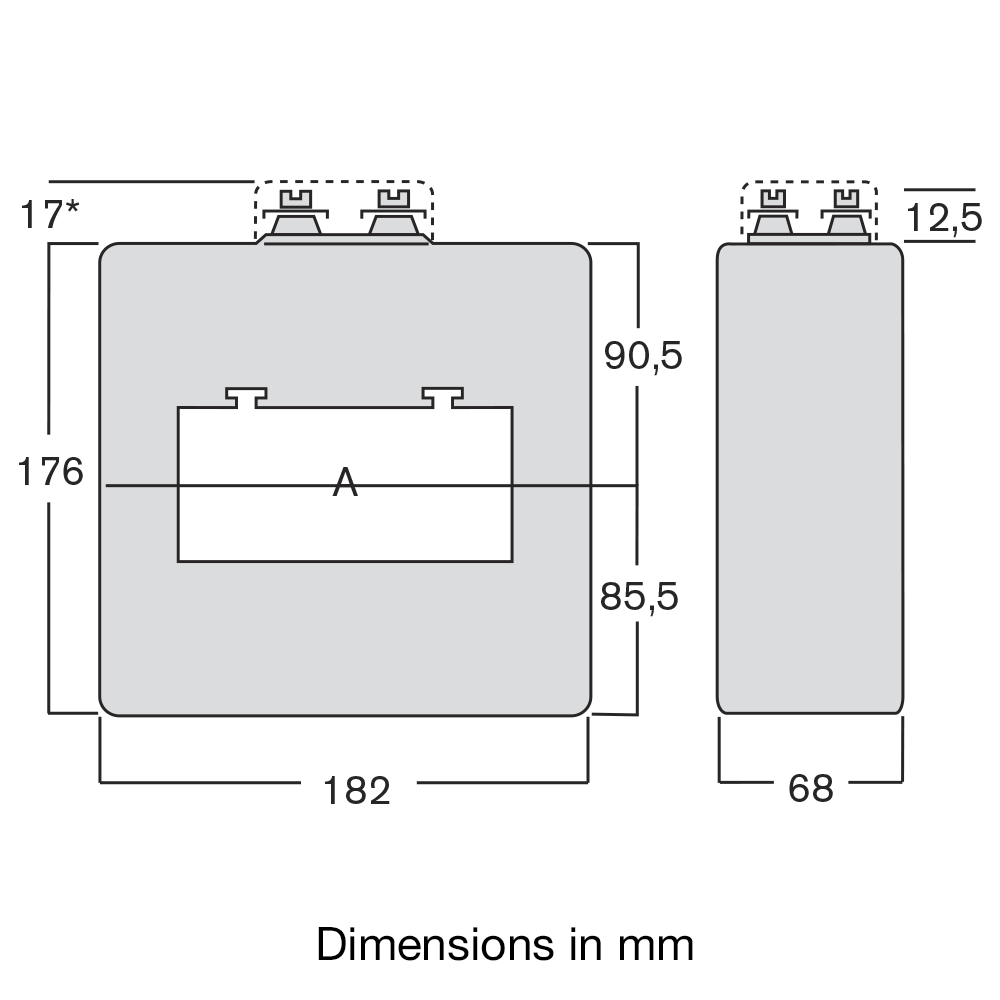

Single-phase current transformer Passing bus bar primary Primary current 400...4000A Secondary current 1 - 5A Accuracy class: cl.5P5 - 5P10 - 5P15 - 5P20 Rated burden: 12…100VA (5P5) 6…30VA (5P10) 3,5…15VA (5P15) 2,5…6VA (5P20) HOUSING Housing material: self extinguishing polycarbonate Protection degree (EN60529): IP40 housing, IP00 terminals (IP20 with sealable terminal cover) Option: sealable terminal cover Weight: 3600 grams (Max.) CONNECTIONS Primary winding: passing bus bar Max. tightening torque for passing primary bar fixing screws: 0,2Nm Secondary winding: tightening by nut M4 Connections label: primary winding P1(K) – P2(L) secondary winding s1(k) – s2(l) DIMENSIONS

Additional Information

Manufacturer IME (BTicino)

Downloads

Product Name / Options Price (ex VAT)
IME TAS125P TAWC50C400 Protection Current Transformer 5P5 5P10 5P15 5P20 - 400/5A Call for Prices
IME TAS125P TAWC50C500 Protection Current Transformer 5P5 5P10 5P15 5P20 - 500/5A Call for Prices
IME TAS125P TAWC50C600 Protection Current Transformer 5P5 5P10 5P15 5P20 - 600/5A Call for Prices
IME TAS125P TAWC50C700 Protection Current Transformer 5P5 5P10 5P15 5P20 - 700/5A Call for Prices
IME TAS125P TAWC50C750 Protection Current Transformer 5P5 5P10 5P15 5P20 - 750/5A Call for Prices
IME TAS125P TAWC50C800 Protection Current Transformer 5P5 5P10 5P15 5P20 - 800/5A Call for Prices
IME TAS125P TAWC50D100 Protection Current Transformer 5P5 5P10 5P15 5P20 - 1000/5A Call for Prices
IME TAS125P TAWC50D120 Protection Current Transformer 5P5 5P10 5P15 5P20 - 1200/5A Call for Prices
IME TAS125P TAWC50D125 Protection Current Transformer 5P5 5P10 5P15 5P20 - 1250/5A Call for Prices
IME TAS125P TAWC50D150 Protection Current Transformer 5P5 5P10 5P15 5P20 - 1500/5A Call for Prices
IME TAS125P TAWC50D160 Protection Current Transformer 5P5 5P10 5P15 5P20 - 1600/5A Call for Prices
IME TAS125P TAWC50D200 Protection Current Transformer 5P5 5P10 5P15 5P20 - 2000/5A Call for Prices
IME TAS125P TAWC50D250 Protection Current Transformer 5P5 5P10 5P15 5P20 - 2500/5A Call for Prices
IME TAS125P TAWC50D300 Protection Current Transformer 5P5 5P10 5P15 5P20 - 3000/5A Call for Prices
IME TAS125P TAWC50D400 Protection Current Transformer 5P5 5P10 5P15 5P20 - 4000/5A Call for Prices
