IME Tema I - TM2I Single Phase Alternating Current Transducers - RMS

More Views

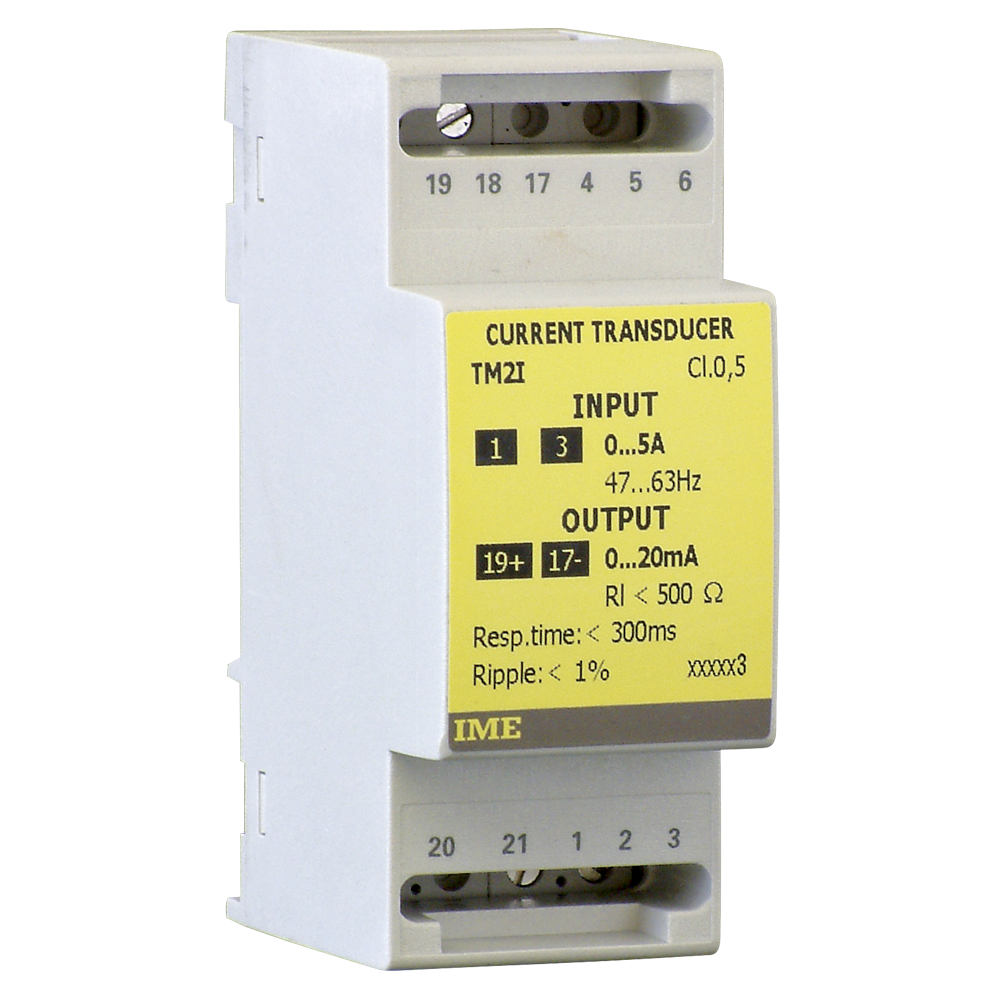

IME Tema I - TM2I Single Phase Alternating Current Transducers - RMS

Features

Alternating current transducer
Self supplied auxiliary
Two module
Single phase AC
Accuracy 0.5 (20…120% In)
Current input 1, 1.2, 5 or 6A

- | Add to Compare

Details

To measure average value,
calibration according RMS value
Input on CT/1A - CT/5A

INPUT

Current rating In : 1 - 1.2 - 5 - 6A (other values on request)
Frequency rating fn : 50Hz
Excessive input of short duration (EN 60688) : 20In/1s
Continuous excessive input : 3In
Rated burden : ≤ 2.5VA

OUTPUT

Type : unidirectional, real zero for variable output load
Accuracy (EN 60688) : class 0.5
Ripple content (EN 60688) : ≤1%
Response time (EN 60688) : ≤300ms
Current rated value : 0…5 - 0…10 - 0…20mA
Compliance voltage : 10V
Output load : £ 500Ω (20mA) - ≤ 1kΩ (10mA) - ≤ 2kΩ (5mA)
Voltage rated value : 0…5 - 0…10V
Output load : 100kΩ (5V) - ≥ 200kΩ (10V)

AUXILIARY SUPPLY

Taken from measurement (self-supplied)

Additional Information

Manufacturer	IME (BTicino)

Downloads

Files

IME Tema I TM2I Single Phase Alternating Current Transducers

Product Name / Options	Price (ex VAT)
IME Tema TM2I TM2IA12 Transducers Input 1A, Output 0 - 5mA	Call for Prices
IME Tema TM2I TM2IA13 Transducers Input 1A, Output 0 - 10mA	Call for Prices
IME Tema TM2I TM2IA14 Transducers Input 1A, Output 0 - 20mA	Call for Prices
IME Tema TM2I TM2IA16 Transducers Input 1A, Output 0 - 5V	Call for Prices
IME Tema TM2I TM2IA18 Transducers Input 1A, Output 0 - 10V	Call for Prices
IME Tema TM2I TM2IA32 Transducers Input 5A, Output 0 - 5mA	Call for Prices
IME Tema TM2I TM2IA33 Transducers Input 5A, Output 0 - 10mA	Call for Prices
IME Tema TM2I TM2IA34 Transducers Input 5A, Output 0 - 20mA	Call for Prices
IME Tema TM2I TM2IA36 Transducers Input 5A, Output 0 - 5V	Call for Prices
IME Tema TM2I TM2IA38 Transducers Input 5A, Output 0 - 10V	Call for Prices
