  • IME TT1B (TT35A) - AC Transformers with Built In Transducer 35mm - 4 wire technology

More Views

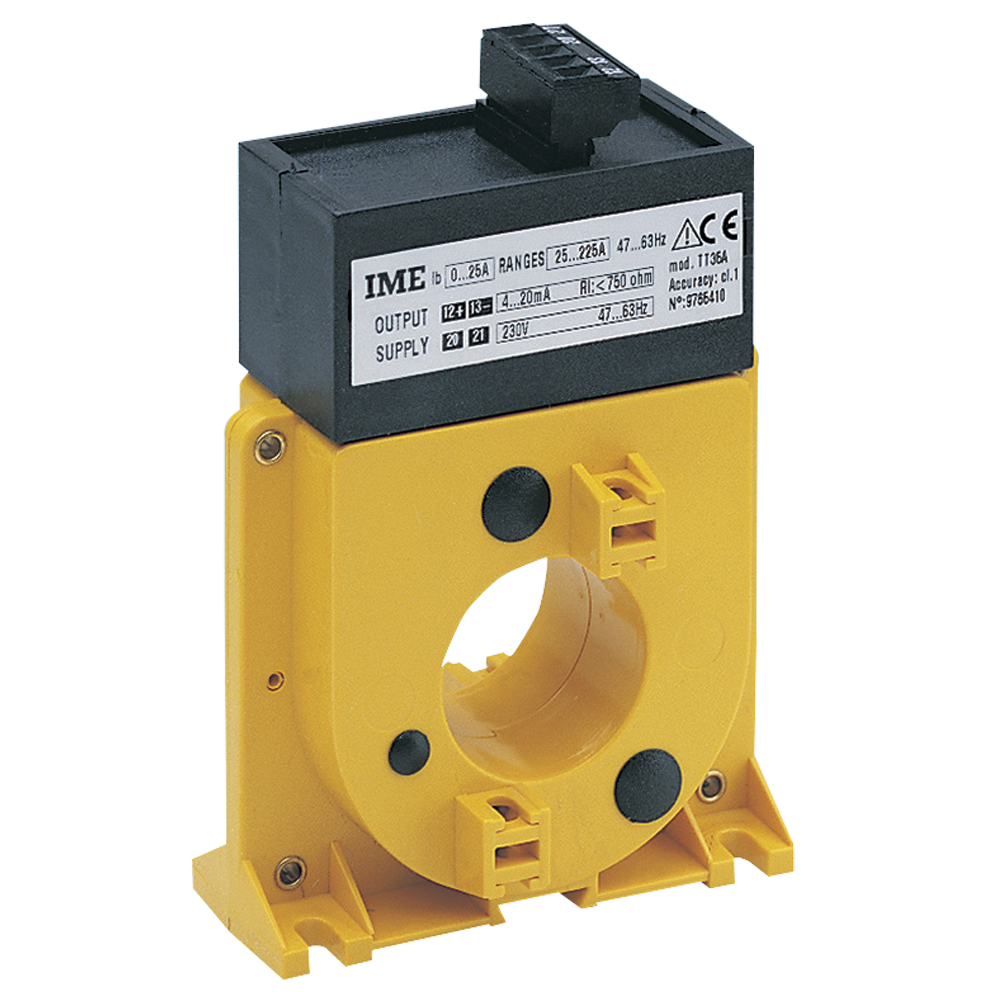

IME TT1B (TT35A) - AC Transformers with Built In Transducer 35mm - 4 wire technology

Features

  • AC current transformer/transducer - to measure single phase AC current and deliver a proportional DC analogue output signal (formerly TT35A)
  • Direct connection up to 225A
  • 35mm internal aperture
  • Primary current field selection
  • 4 primary ranges and 9 programmable ranges
  • Supply voltage 230Vac or 115Vac
  • Selectable ranges: 5.. 45 – 15...135 – 25...225 – 50...450A
  • Output 0...20mA - 4...20mA - 0...10V dc
  • Accuracy Class 1

Details

A toroidal transducer to measure AC current with sinusoidal waveforms and provide a proportional analogue output. The unit has a 35mm diameter aperture, through which the conductor is passed, and has nine measuring ranges which may be selected by dip-switch. The TT1B is a 4-wire unit for AC auxiliary supplies.

Additional Information

Manufacturer IME (BTicino)

Downloads

Files

TT1A/B Manual TT1A/B 10780221 01-04
TT1B Data Sheet TT1A Data Sheet NT434-06
Product Name / Options Price (ex VAT)
TT1BA5023 (5-45A 4-20mA 230Vac) Call for Prices
TT1BB1523 (15-135A 4-20MA 230VAC) Call for Prices
TT1BB2522 (25-225A 4-20mA 115Vac) Call for Prices
IME TT1BB2512 TT35A (Input 25 - 225A, Output 0...20mA, 115V ca/ac Auxillary Supply) Call for Prices
TT1BB5022 (50-450A 4-20mA 115Vac) Call for Prices
TT1BA5032 (5-45A 10VDC 115Vac) Call for Prices
TT1BB2523 (25-225A 4-20mA 230Vac) Call for Prices
TT1BB5023 (50-450A 4-20mA 230Vac) Call for Prices
TT1BB1522 (15-135A 4-20MA 115VAC) Call for Prices
IME TT1BA5013 TT35A (Input 5 - 45A, Output 0...20mA, 230V ca/ac Auxillary Supply) Call for Prices
TT1BA5022 (5-45A 4-20mA 115Vac) Call for Prices
