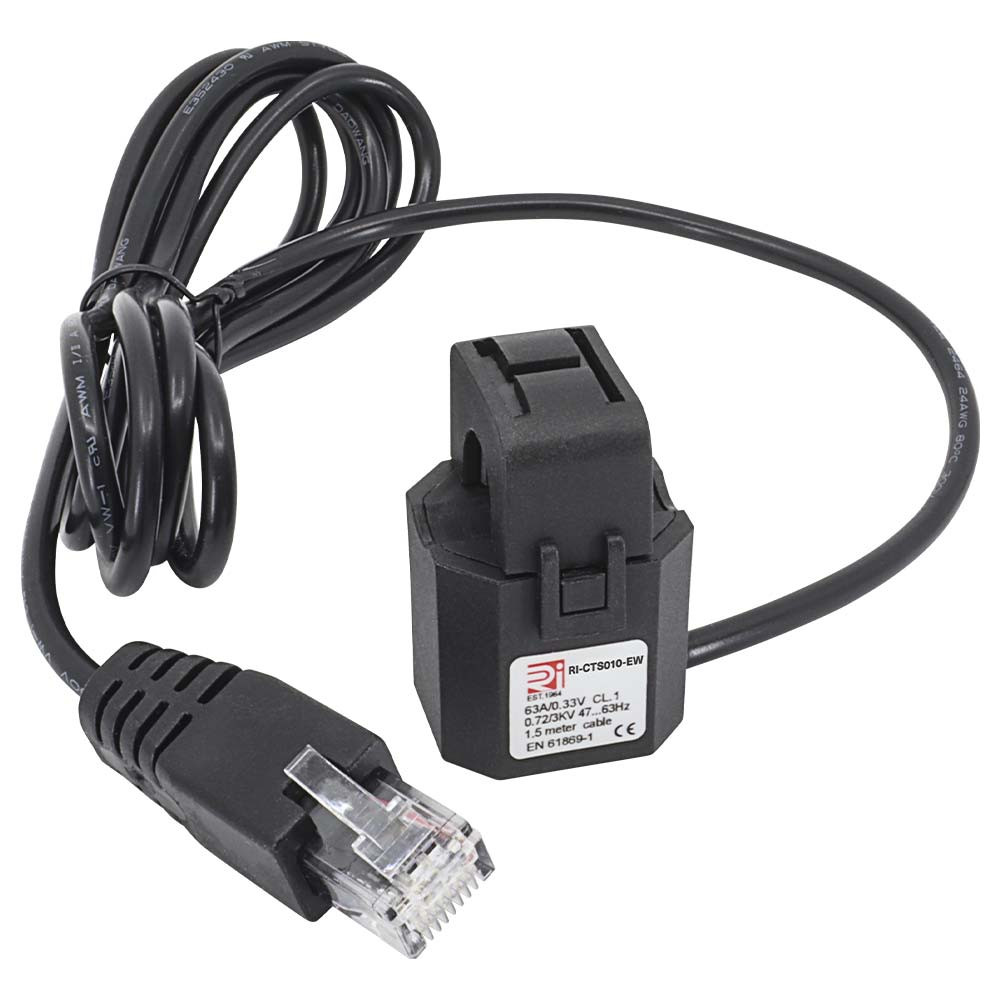

Rayleigh Instruments easywire RI-CTS010-EW Mini Split Core Current Transformer

Features

  • Patented technology
  • 63A Primary current
  • RJ45 connector output
  • easywire® 330mV Secondary output
  • 10mm cable aperture and 25.3mm width
  • Integral 1 metre cable
  • Snap together housing
  • Compact design
  • Indication of primary current flow (arrow on case body)

Details

The RI-CTS010-EW is part of the easywire® family of current transformers and forms part of a large family of split-core single-phase moulded case current transformers from Rayleigh Instruments.

The easywire® system has been designed to save up to 90% installation time compared to a standard current transformer to meter installation.

These transformers are suitable for monitoring current flow in domestic, commercial, industrial or utility applications and are designed to connect to the easywire® series of metering products.

The RI-CTS010-EW current transformers have been designed for ease of installation into existing set-ups where removal of existing cable is impractical. They also have clear markings moulded into the case to indicate the correct direction of primary current flow to minimise installation errors.

Built-in limiting circuitry ensures the secondary of the current transformer is always under load and clamped to a safe level. This means that the output connection may be safely disconnected while under load.

A splitter box is also available to enable these current transformers to be used in three-phase applications.

Additional Information

Manufacturer Rayleigh Instruments
