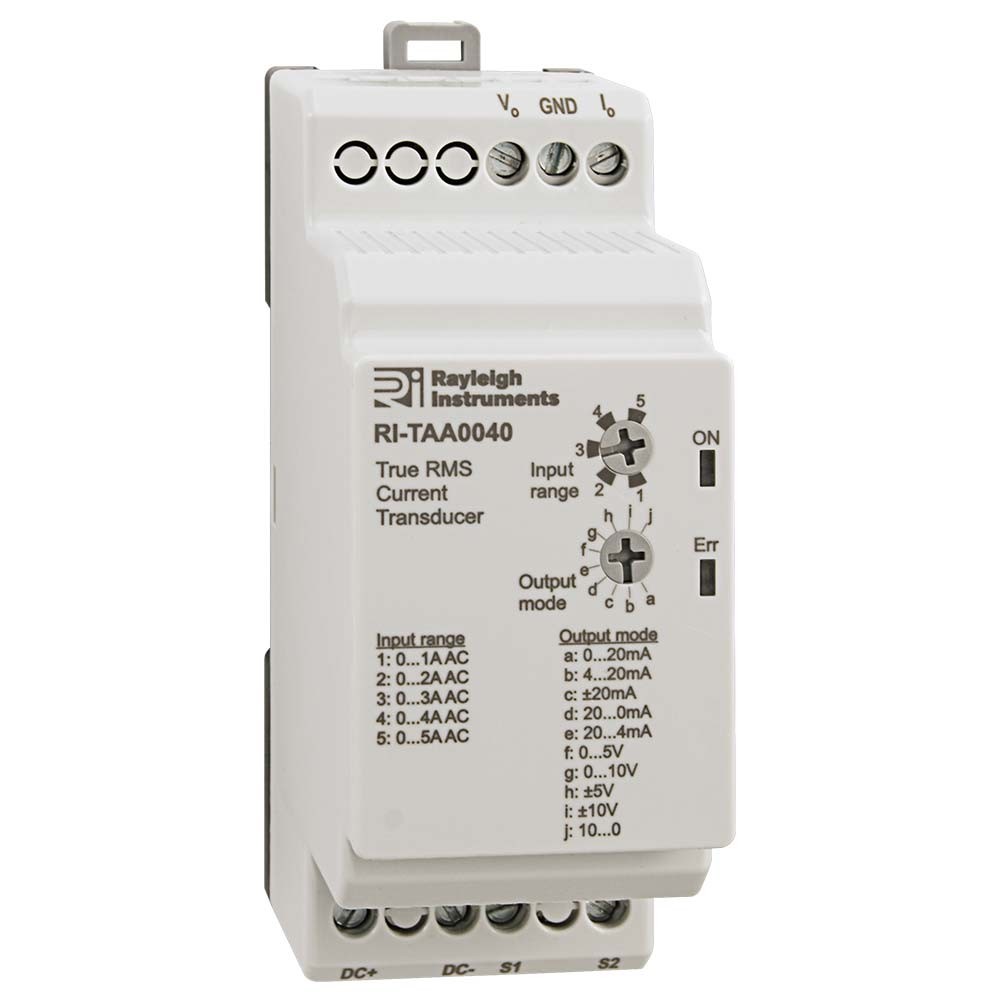

Rayleigh Instruments RI-TAA0040 Current Transducer - True RMS

Features

  • DIN Rail mounting
  • Configurable Input Current Range (AC) : 0…1A, 0…2A, 0…3A, 0…4A, 0…5A
  • Frequency : 40…70Hz
  • Surge Overload : 20xin (100A) for 1sec
  • Configurable Output : 0…20mA, 4…20mA, ±20mA, 20…0mA, 20…4mA, 0…5V, 0…10V, ±5V, ±10V, 10…0V
  • Supply Voltage : 10…36V DC
  • Power Consumption : <4VA AC, <1.5W DC
  • Response Time : <350ms

Details

To measure single phase True RMS AC current inputs both direct, or from a current transformer (-/1A or -/5A) and deliver a proportional DC analogue output.

Additional Information

Manufacturer Rayleigh Instruments
