Rayleigh Instruments RI-TVV0030 Voltage Transducer - True RMS

More Views

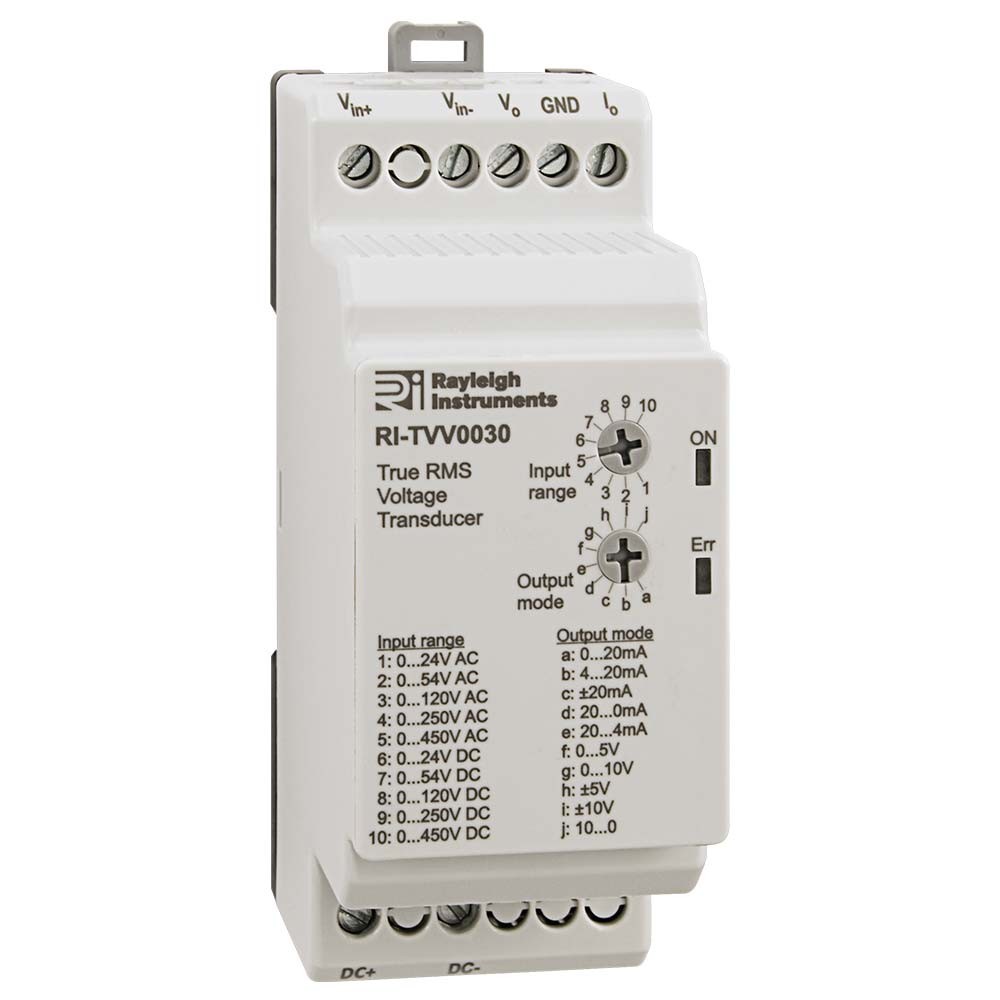

Rayleigh Instruments RI-TVV0030 Voltage Transducer - True RMS

Features

DIN Rail mounting
Configurable Input Voltage Range :
0…24V, 0…54V, 0…120V, 0…250V, 0…450V (AC)
0…24V, 0…54V, 0…120V, 0…250V, 0…450V (DC)
Frequency : 40…70Hz
Surge Overload : <2xU Input Max. Range (5 pulses 1 sec)
Configurable Output : 0…20mA, 4…20mA, ±20mA, 20…0mA, 20…4mA, 0…5V, 0…10V, ±5V, ±10V, 10…0V
Supply Voltage : 10…36V DC
Power Consumption : <4VA AC, <1.5W DC
Response Time : <350ms

- | Add to Compare

Details

To measure single phase True RMS AC Voltage inputs and deliver a proportional DC analogue output signal.

Additional Information

Manufacturer	Rayleigh Instruments

Downloads

Files

RI-TV Series Data Sheet (1.48MB)

Product Name / Options	Price (ex VAT)
Call our Sales Team for Model Options and Prices - 01245 428500	Call for Prices
