Selec 600VPR Voltage Protection Relay

More Views

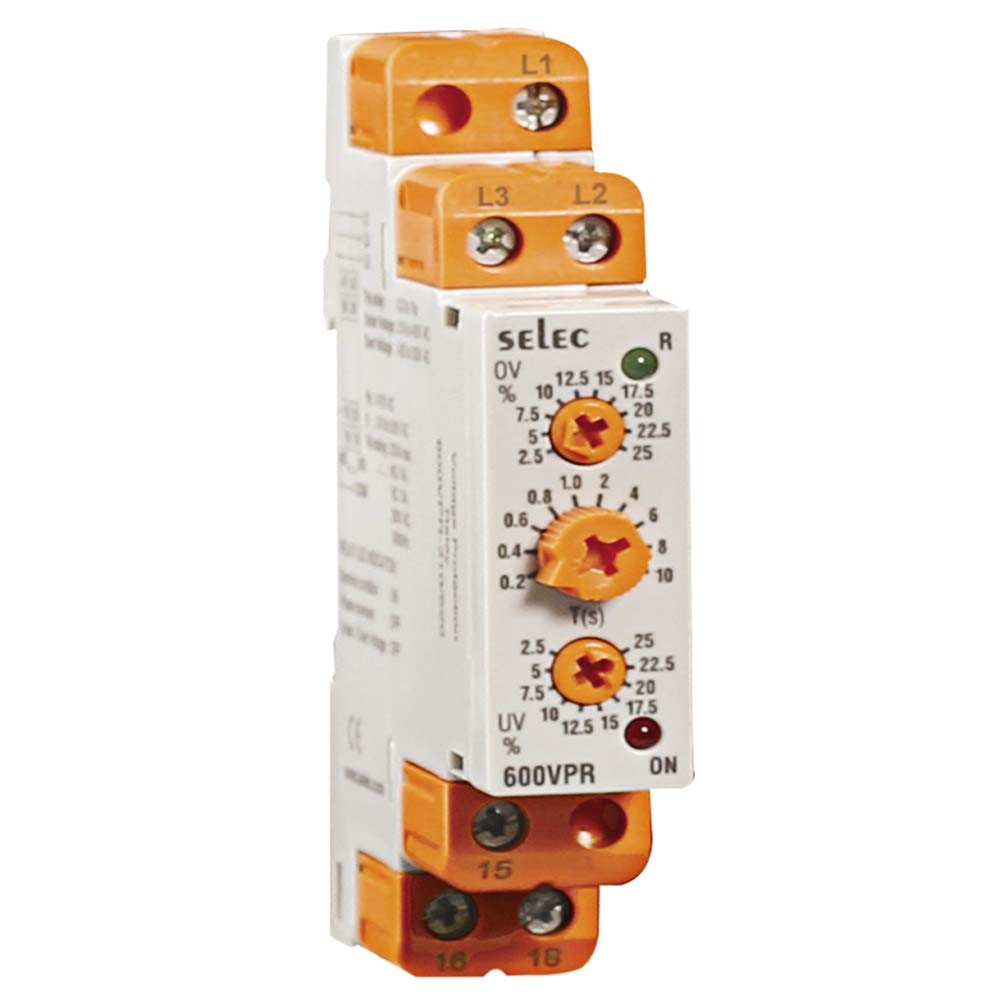

Selec 600VPR Voltage Protection Relay

Features

Under Voltage & Over Voltage
3 Phase 3-Wire operation
17.5mm DIN rail mounting enclosure
Under Voltage 180…234Vac
Over Voltage 246…300Vac
Optional 310 - 520V
1 x Changeover contact
Contact rating 3A at 250Vac
Fixed on delay 200mS
Adjustable off (trip) delay 0.2-10s

- | Add to Compare

Details

Measuring Parameter	Under Voltage, Over Voltage, Phase Sequence, Phase Failure
Electrical Connection	3Ø-3W
Time Ranges	Trip Time Delay : 0.2 to 10 sec, Power On Delay : 400msec
Accuracy	Trip Voltage : ±0.5% of F.S, Trip Time : ±5% of F.S
Output Contact	1 C/O (SPDT)
Output Rating	NC : 3A @ 250V AC, NO : 5A @ 250V AC
Operating Voltage	310 to 520V AC (L-L)
Supply Voltage	310 to 520V AC (L-L)
Size	17.5mm
Mounting Type	DIN Rail Mount
Certification	CE

Additional Information

Manufacturer	Selec

Downloads

Files

Selec 600VPR Data Sheet 12_18

Product Name / Options	Price (ex VAT)
Call our Sales Team for Model Options and Prices - 01245 428500	Call for Prices
