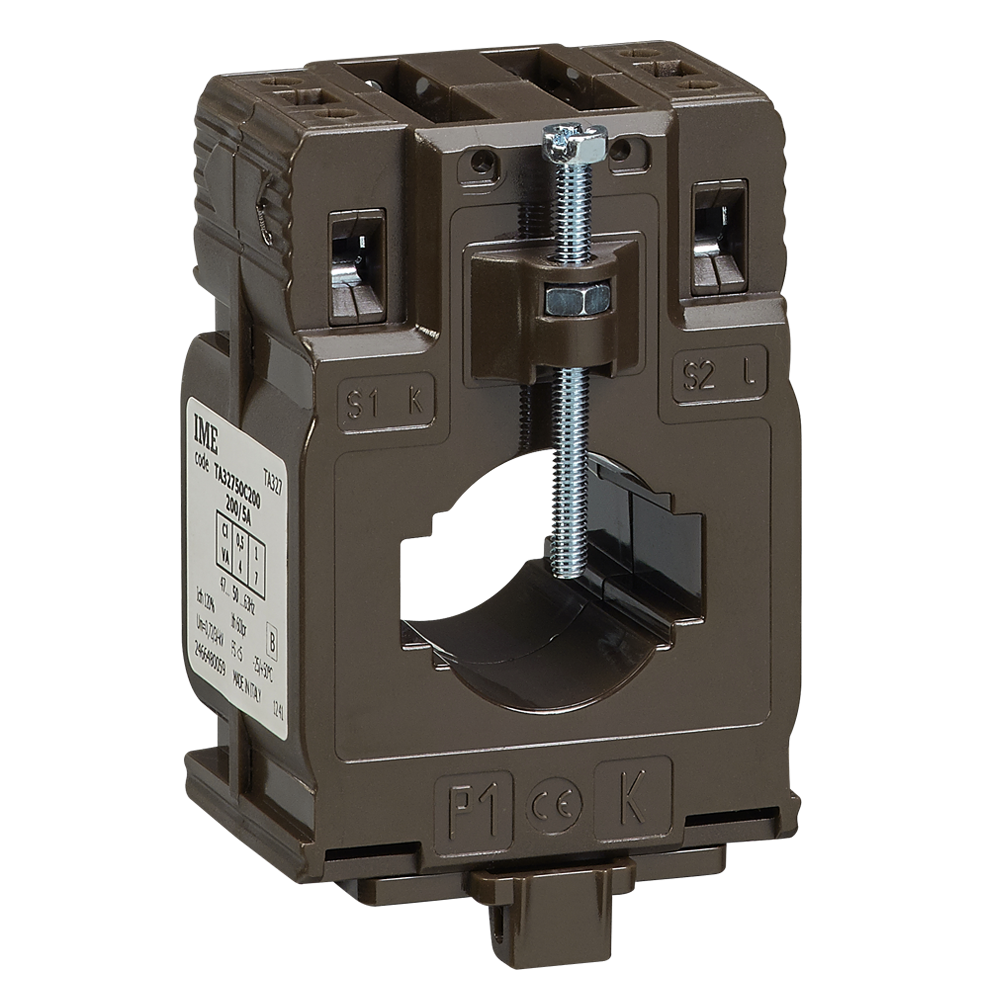

IME TA327...S High Accuracy Single Phase Current Transformer

Features

  • High accuracy current transformer : Class 0.2s - 0.2 - 0.5s
  • Range : 150…600A (1A or 5A Secondary)
  • Busbar window : 32.5 x 10.5mm & 25.5 x 15.5mm
  • Cable aperture : Ø27mm
  • With fixing feet & DIN rail adaptor
  • Secondary terminals M6 screws and 4.8 x 0.8mm fast-on
  • Weight : 260g
  • Optional sealable terminal cover (ATACOP13)

Details

Measuring current transformer with moulded fixing feet/DIN rail.

The TA327...S high accuracy current transformer is supplied with busbar mounting bracket, has a 27mm diameter (32.5 x 10.5mm & 25.5 x 15.5mm) aperture, and is available with primary currents from 50 to 600A

Additional Information

Manufacturer IME (BTicino)

Downloads

Files

TA327...S Data Sheet TA327...S Data Sheet NT829-02
TA432...S Data Sheet TA432...S Data Sheet NT830-02
TA327 Data Sheet TA327 Data Sheet NT812-02
Product Name / Options Price (ex VAT)
TA32750C300S (300/5A) Call for Prices
