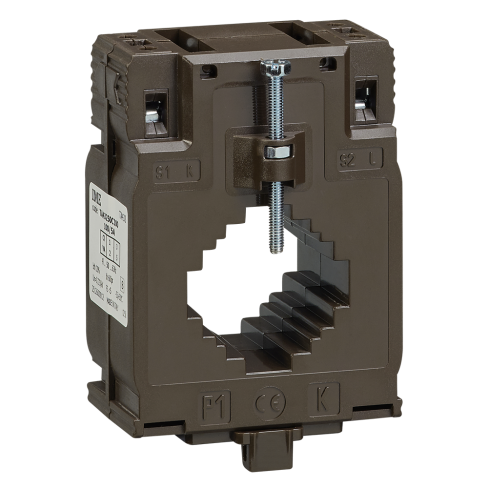

IME TA432...S High Accuracy Single Phase Current Transformer

Features

  • High accuracy current transformer
  • Range 100 to 1000A (1A or 5A Secondary)
  • Busbar window 40.5x10.5mm, 32.5x20.5mm & 25.5x25.5mm
  • Cable aperture 32mm
  • With fixing feet & DIN rail adaptor
  • Secondary terminals M6 screws and 4.8x0.8mm fast-on
  • Weight 420g
  • Optional sealable terminal cover (ATACOP13)

Details

Measuring current transformer with moulded fixing feet/DIN rail. The TA432 current transformer is supplied with busbar mounting bracket, has a 32mm diameter (40.5x10.5mm, 32.5x20.5mm & 25.5x25.5mm) aperture, and is available with primary currents from 100 to 1000A.

Additional Information

Manufacturer IME (BTicino)

Downloads

Product Name / Options Price (ex VAT)
TA43250C400S (400/5A) Call for Prices
TA43250C500S (500/5A) Call for Prices
