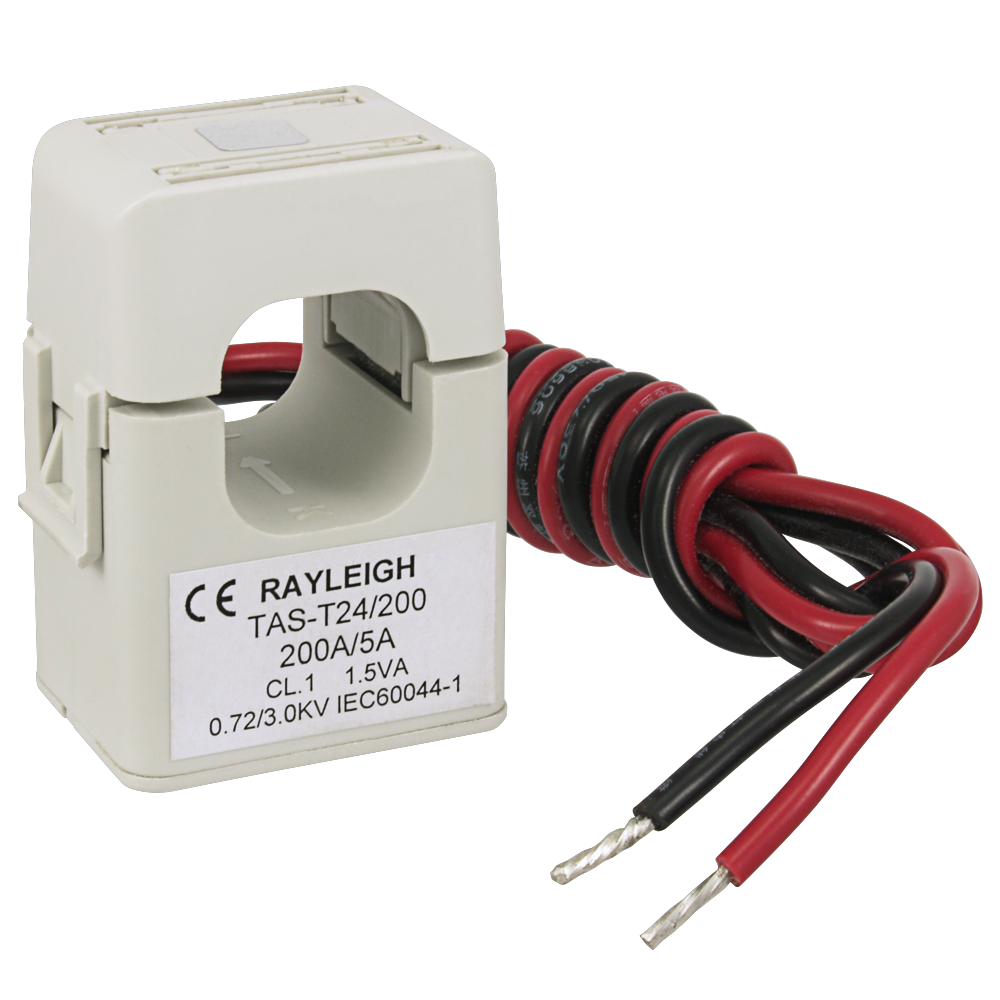

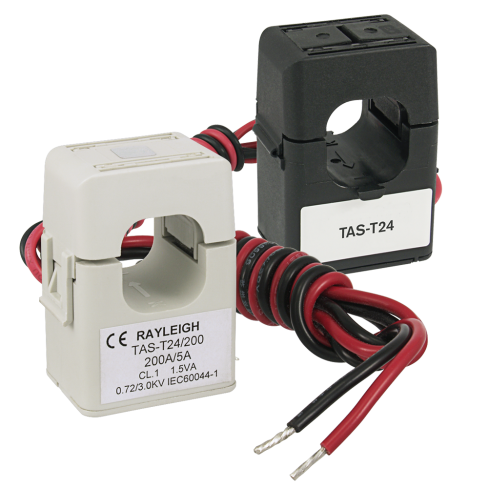

Rayleigh Instruments TAS-T24 Single Phase Clip On Mini Split Core Current Transformer - 24mm Aperture

Features

This product is no longer available - see bottom of page for alternative

  • Single Phase Mini Split core Measuring Current Transformer

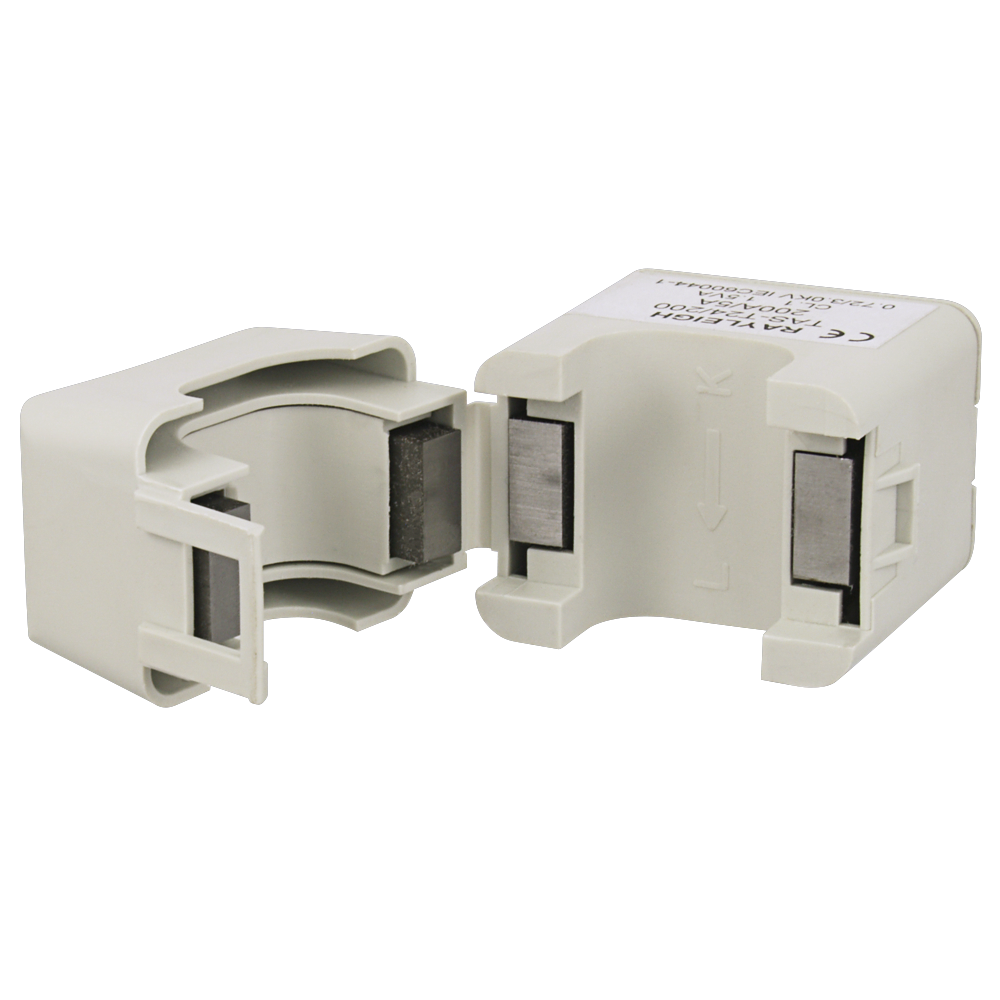

  • Snap together housing
  • Range 100…300A
  • Cable aperture 24mm
  • 1 meter flying lead.
  • Class 1 Accuracy

Details

This product is no longer available - see bottom of page for alternative

Mini Split Core current transformers are designed to offer a cost effective solution for installation into existing plants where breaking the conductor cable is impractical.

The TAS-T24 range of mini split core current transformers offers primary currents of 100 to 300A, dependent on model, with a 333mV secondary and comes with 1 meter colour coded leads for connection to the energy meter.

Additional Information

Manufacturer Rayleigh Instruments

Downloads

Product Name / Options Price (ex VAT)
TAS-T24 - Mini Split Core Current Transformer (Black) - 100 / 5A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Black) - 160 / 5A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Black) - 200 / 5A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Black) - 250 / 5A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Black) - 300 / 5A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Grey) - 100 / 5A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Grey) - 160 / 5A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Grey) - 200 / 5A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Grey) - 250 / 5A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Grey) - 300 / 5A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Black) - 100 / 1A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Black) - 160 / 1A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Black) - 200 / 1A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Black) - 250 / 1A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Grey) - 100 / 1A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Grey) - 160 / 1A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Grey) - 200 / 1A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Grey) - 250 / 1A Call for Prices
TAS-T24 - Mini Split Core Current Transformer (Grey) - 300 / 1A Call for Prices
