  • IME TASO...S (formerly TAS84S) High Accuracy Single Phase Current Transformer

More Views

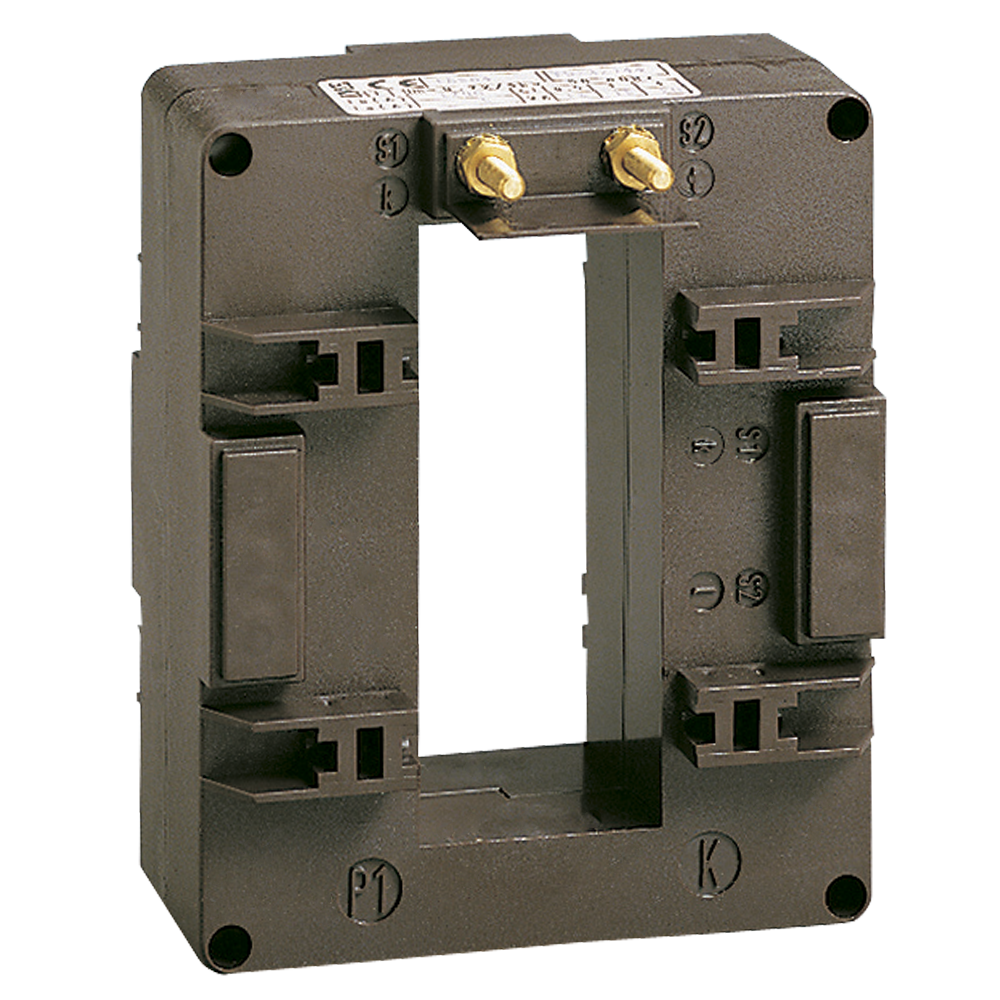

IME TASO...S (formerly TAS84S) High Accuracy Single Phase Current Transformer

Features

  • Measuring current transformer (formerly TAS84S)
  • Ranges: 150 to 2500A (1A or 5A Secondary)
  • Busbar window 84 x 34mm
  • Supplied with busbar mounting clamps
  • Secondary pillar screw terminals
  • Optional sealable terminal cover (ATACOP04)
  • Optional spacer for 60mm bar (ATADIS01)
  • Weight 700g

Details

Stadium type measuring current transformer supplied with busbar mounting bracket. The TASO transformer has an 84 x 34mm aperture and is available with primary currents from 150 to 2500A.

Additional Information

Manufacturer IME (BTicino)

Downloads

Files

TASO...S Data Sheet TASO...S Data Sheet NT832-01
Product Name / Options Price (ex VAT)
TASO50D100S (1000/5A) Call for Prices
TASO50D160S (1600/5A) Call for Prices
TASO50D200S (2000/5A) Call for Prices
